Backup Power Supply Removal/Installation: Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Scuff plate (passenger's side) (See SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (passenger's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. A-pillar trim (passenger's side) (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    4. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    5. Center panel No. 2 (See CENTER PANEL No. 2 REMOVAL/INSTALLATION .)
    6. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    7. Center display (See CENTER DISPLAY REMOVAL/INSTALLATION .)
  3. Remove the bolts.

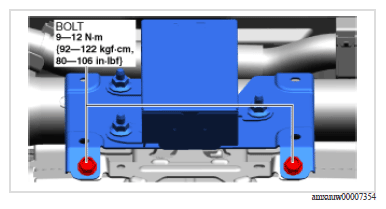

    Fig 1: Backup Power Supply Bolts With Torque Specifications
    G16810223Courtesy of MAZDA MOTORS CORP.
  4. Cut off the tape shown in the figure.

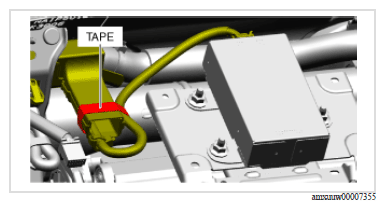

    G16810224Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the connector.

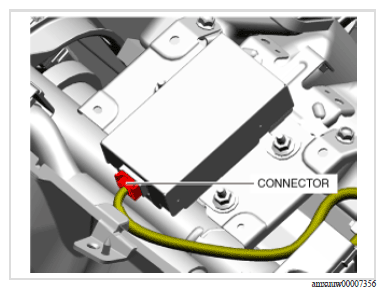

    G16810225Courtesy of MAZDA MOTORS CORP.
  6. Remove the backup power supply and bracket as a single unit. (See BACKUP POWER SUPPLY COMPONENT INSTALLATION NOTE .)
  7. Remove the nuts.

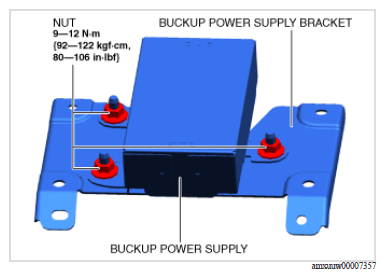

    Fig 2: Backup Power Supply, Bracket And Nuts With Torque Specifications
    G16810226Courtesy of MAZDA MOTORS CORP.
  8. Remove the backup power supply.
  9. Install in the reverse order of removal.
