Oil Pump Installation Note

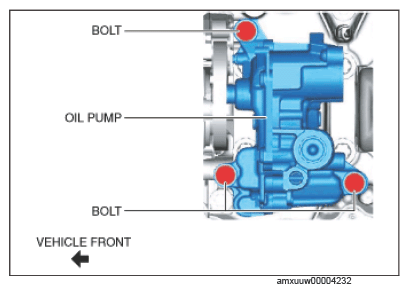

1. Temporarily tighten the three bolts shown in the figure.

   Courtesy of MAZDA MOTORS CORP.

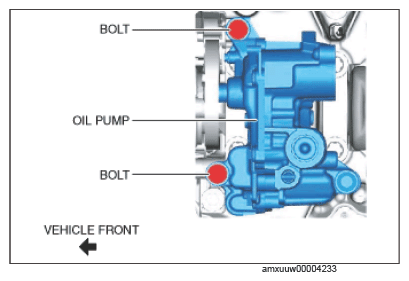

2. Tighten the two bolts shown in the figure to the specified torque.

   Courtesy of MAZDA MOTORS CORP.

   NOTE:

   • The tightening order for the two bolts is optional.

   Tightening torque

   20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}

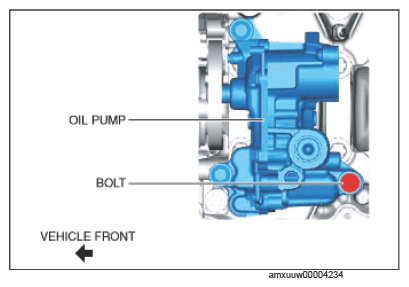

3. Tighten the bolt shown in the figure to the specified torque.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
