Engine Mount (LH): Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

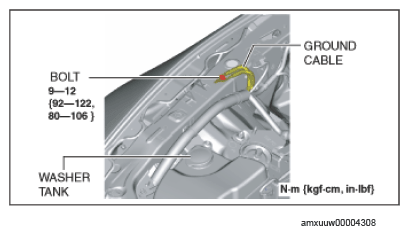

  2. Remove the bolt shown in the figure below and set the ground cable aside.
    Fig 1: Washer Tank, Ground Cable And Bolt With Torque Specifications
    G14587946Courtesy of MAZDA MOTORS CORP.
  3. Remove the front wheels and tires (LH). (See GENERAL PROCEDURES (SUSPENSION) .)

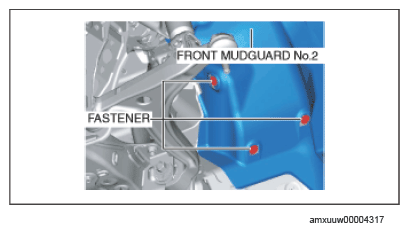

  4. Remove the fasteners shown in the figure below and slightly bend back the front mudguard No. 2 (LH).
    G14587947Courtesy of MAZDA MOTORS CORP.
  5. Remove the front splash shield No. 1 (LH). (See FRONT SPLASH SHIELD No. 1 REMOVAL/INSTALLATION .)
  6. Remove in the order indicated in the table.
  7. Install in the reverse order of removal.

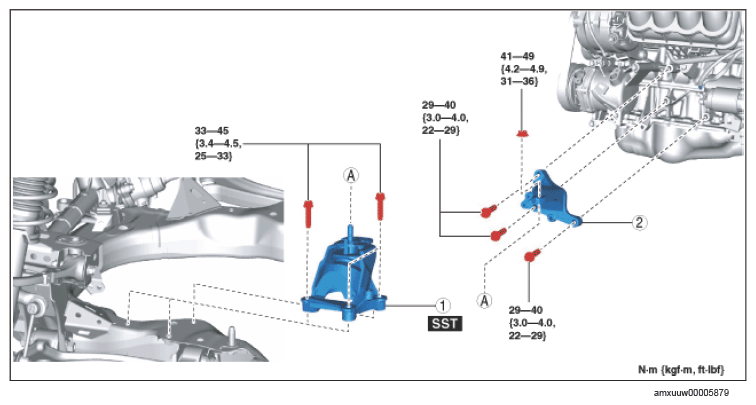

    Fig 2: Engine Mount Rubber, Bracket And Bolts With Torque Specifications (LH)
    G14587948Courtesy of MAZDA MOTORS CORP.
    COMPONENT OPERATIONS

    Component no. Refer to
    1 Engine mount rubber (LH)
    (See ENGINE MOUNT RUBBER (LH) REMOVAL NOTE .)
    (See ENGINE MOUNT RUBBER (LH) INSTALLATION NOTE .)
    2 Engine mount bracket (LH)
    (See ENGINE MOUNT BRACKET (LH) REMOVAL NOTE .)
    (See ENGINE MOUNT BRACKET (LH) INSTALLATION NOTE .)
