Control rod component, nut and washer installation note

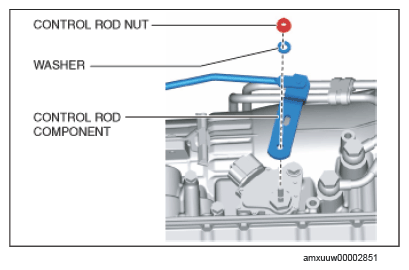

Install the control rod component and washer.

Courtesy of MAZDA MOTORS CORP.

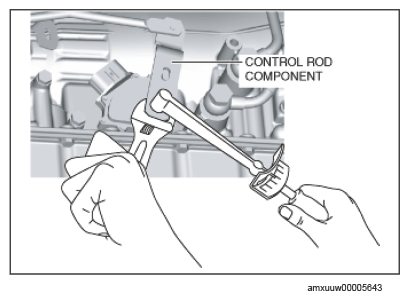

Secure the control rod component with an adjustable wrench and tighten the control rod nut as shown in the figure.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not use an impact wrench.
- When tightening the control rod nut, secure the control rod component without applying torque within the AT.
Tightening torque

14-18 N.m {1.5-1.8 kgf.m, 11-13 ft.lbf}
