Front Seat Cushion Frame/Adjuster Unit Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

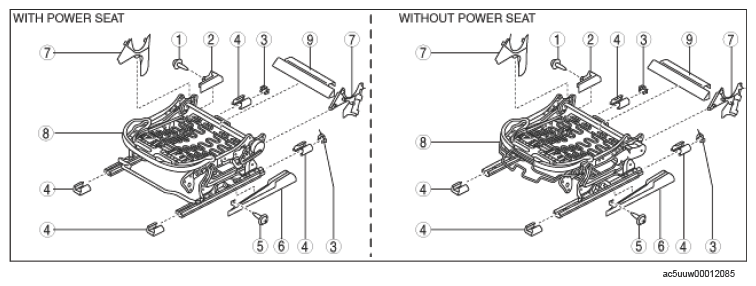

    G15642045Courtesy of MAZDA MOTORS CORP.
    FRONT SEAT CUSHION FRAME/ADJUSTER UNIT COMPONENT OPERATIONS

    Component no Refer to
    1 Screw
    2 Lower cover
    3 Protector
    4 Rail cover
    5 Screw
    6 Cushion frame cover
    7 Reverse cover
    8 Adjuster unit
    9 Spacer (with spacer)
  2. Assemble in the reverse order of disassembly.
