Front ABS Wheel-Speed Sensor Wiring Harness And Clip Disconnection Note

NOTE:

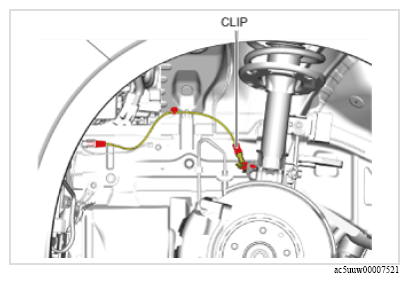

• Refer to this note only if the disconnection of the front ABS wheel-speed sensor wiring harness and the clip shown in the figure is required.

Courtesy of MAZDA MOTORS CORP.

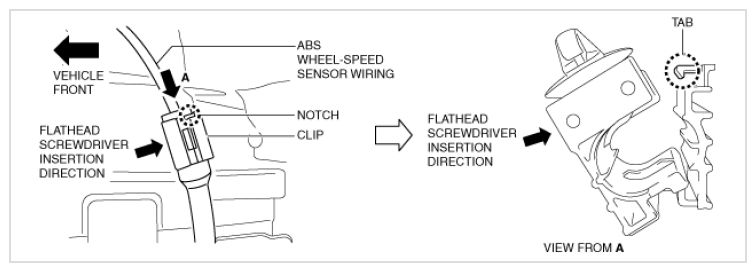

1. Insert a flathead screwdriver from the side where there is no notch as shown in the figure below.

   Courtesy of MAZDA MOTORS CORP.

2. Detach the tab as shown in the figure above and disconnect the ABS wheel-speed sensor wiring harness and clip.
