Starting System Location Index

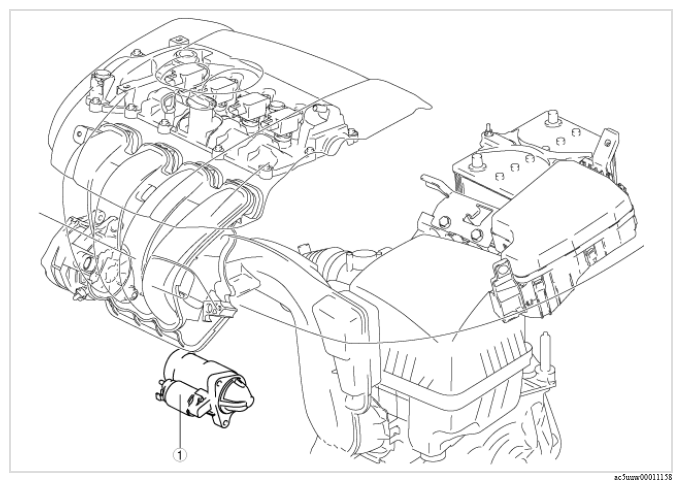

Fig 1: Starting System Components Location

Courtesy of MAZDA MOTORS CORP.

STARTING SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Starter (See STARTER REMOVAL/INSTALLATION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .) (See STARTER INSPECTION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .) (See STARTER DISASSEMBLY/ASSEMBLY [VIN L (WITHOUT CYLINDER DEACTIVATION)] .)
