LED Illumination Inspection

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Driver's side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Driver's side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION .)

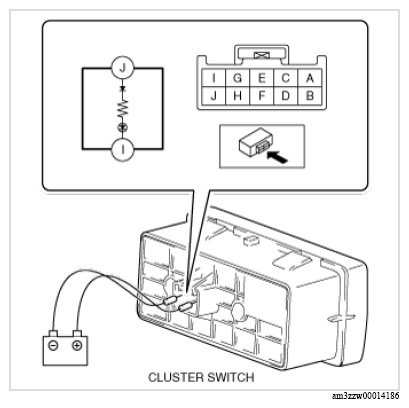

Apply battery positive voltage to cluster switch terminal J, and connect terminal I to ground.

Courtesy of MAZDA MOTORS CORP.
Verify that the LED in the cluster switch turns on.
- If the LED does not turn on, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
