Mazda intelligent Drive Select (Mi-Drive) SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the console side panel. (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
3. Remove the switch panel. (See SWITCH PANEL REMOVAL/INSTALLATION .)
4. Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
5. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
6. Turn over the removed shift panel and remove the boots from the boots securing parts shown in the figure.

   Courtesy of MAZDA MOTORS CORP.

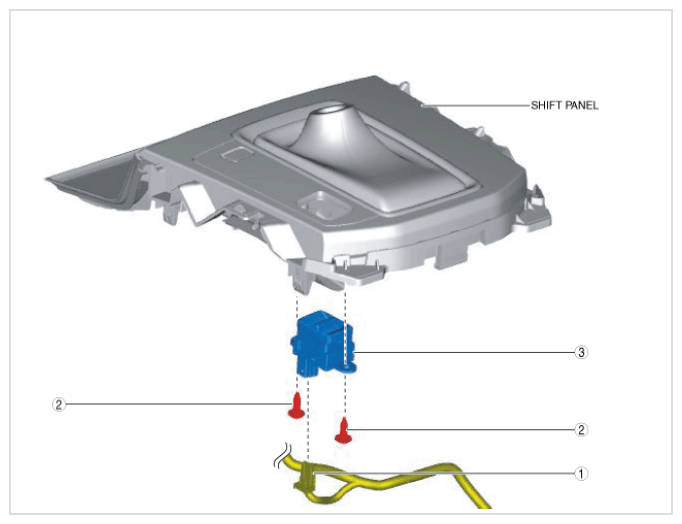

7. Remove in the order indicated in the table.
8. Install in the reverse order of removal.

Courtesy of MAZDA MOTORS CORP.

MAZDA INTELLIGENT DRIVE SELECT (MI-DRIVE) SWITCH COMPONENT OPERATIONS

Component No.	Refer to
1	Connector
2	Screw
3	Mi-Drive switch
