Engine Compartment Side

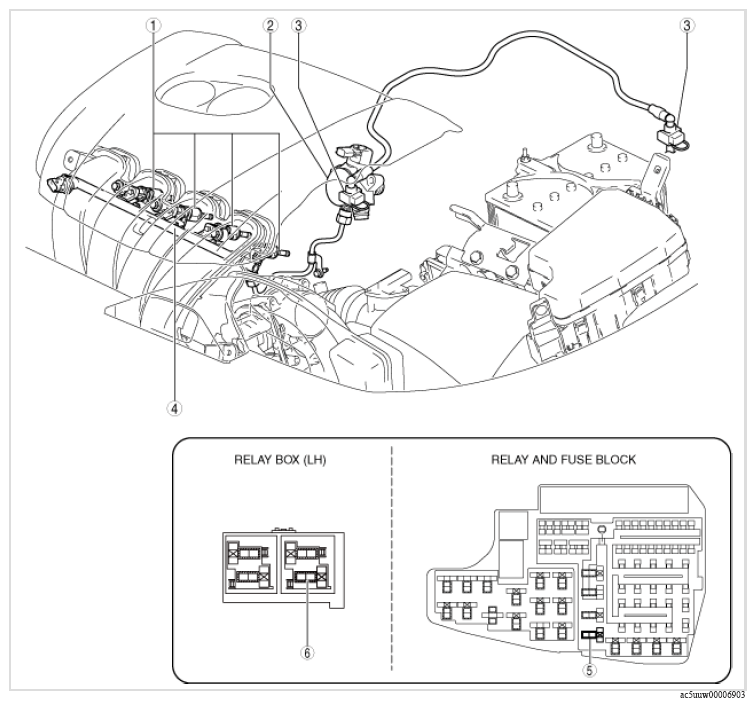

Fig 1: Fuel System Components Location (Engine Compartment Side)

Courtesy of MAZDA MOTORS CORP.

FUEL SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .) (See FUEL INJECTOR INSPECTION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .)
2	High pressure fuel pump (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .) (See HIGH PRESSURE FUEL PUMP INSPECTION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .)
3	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .)
4	Fuel distributor (See FUEL INJECTOR REMOVAL/INSTALLATION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .)
5	Sub relay (See RELAY INSPECTION .)
6	Fuel pump relay (See RELAY INSPECTION .)
