Fuel Pump Unit Disassembly/Assembly: AWD

Courtesy of MAZDA MOTORS CORP.

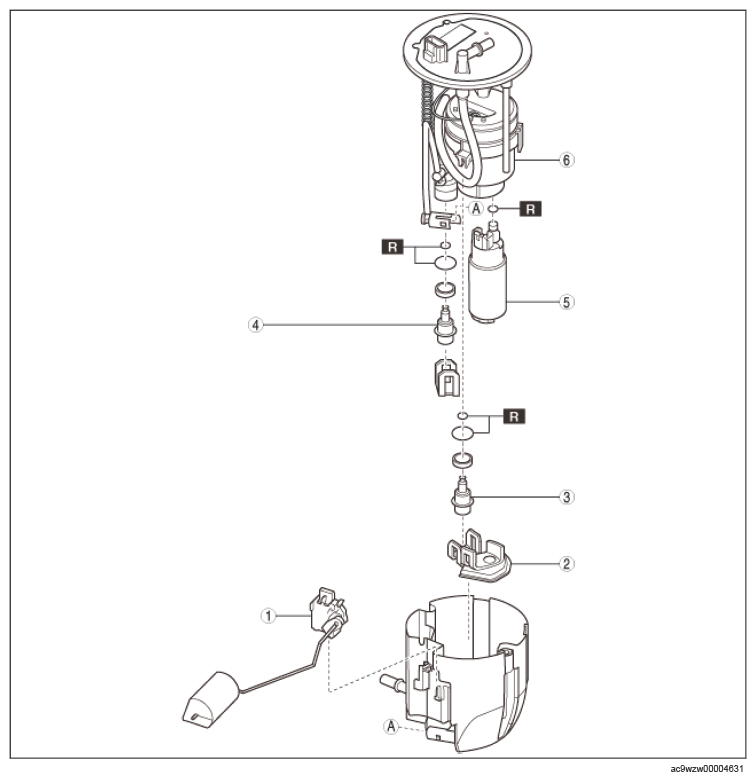

FUEL PUMP UNIT COMPONENT OPERATIONS

Component No.	Refer to
1	Fuel gauge sender unit
2	Fuel filter (low-pressure)
3	Relief valve (See Relief Valve Installation Note .)
4	Check valve (See Check Valve Installation Note .)
5	Fuel pump
6	Fuel filter (high-pressure)
