Pandora ®
WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

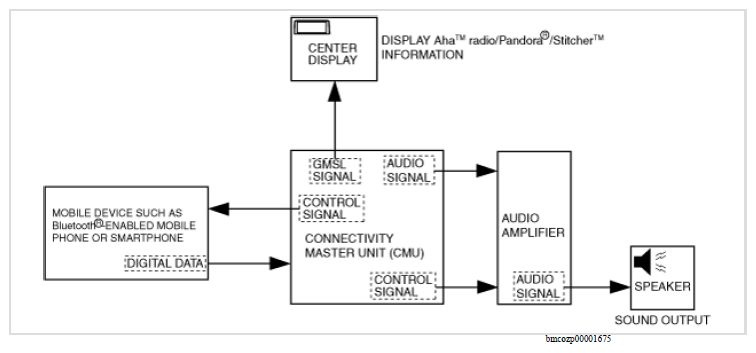

- When the connectivity master unit (CMU) receives the operation signal/detects the switch operation, it sends the control signal to the audio amplifier and a mobile device such as a Bluetooth ®-enabled mobile phone or a Smartphone.
- When the mobile device such as a Bluetooth ®-enabled mobile phone or a Smartphone receives the control signal, it receives the Pandora ® send the digital data to the connectivity master unit (CMU).
- The connectivity master unit (CMU) converts the received video signal of the digital data to a GMSL signal and sends the GMSL signal to the center display. In addition, it sends the audio signal to the audio amplifier.
- The center display indicates the radio information based on the GMSL signal received from the connectivity master unit (CMU). In addition, the audio amplifier sends the received audio signal to the speakers. The speakers output the audio based on the received audio signal.
