Inspect Washer Fluid Level Sensor

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Perform the procedure with the washer fluid level sensor connector disconnected. (See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION )

Inspect for continuity between washer fluid level sensor terminals A-B while adjusting the washer fluid level.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.

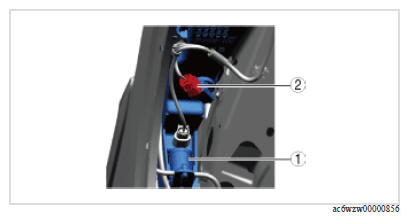

COMPONENT OPERATIONS

Component no	Refer to
1	Washer tank
2	Washer fluid level sensor connector

Float in washer fluid level sensor is in lowest position: Continuity
Float in washer fluid level sensor is in position other than lowest position: No continuity
- If the continuity cannot be verified as indicated above, replace the washer fluid level sensor. (See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION )
