Remove Driver Monitoring Camera Unit

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Depending on the condition of the vehicle, it may not be possible to transfer the driver monitoring camera unit data before replacement. If the driver monitoring camera unit data cannot be transferred, the driver information stored in the driver monitoring camera unit is deleted. When replacing the driver monitoring camera unit, explain to the customer that it is necessary to reset the driver information before replacement.

Remove using the procedure shown in the figure.

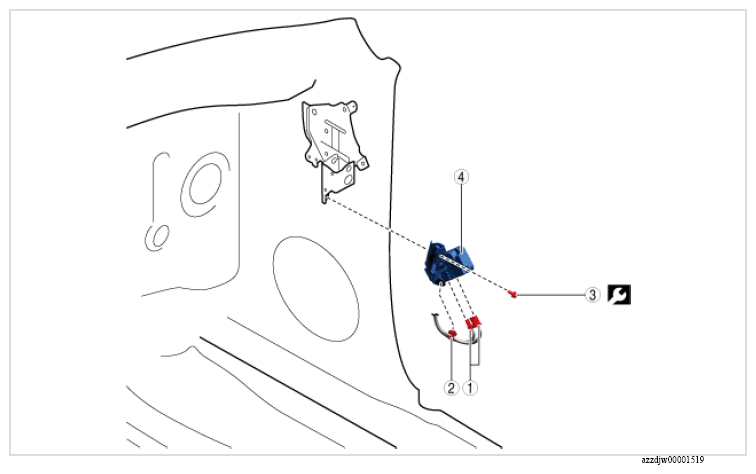

Fig 1: Driver Monitoring Camera Unit, Clip, Connector And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Connector	-
2	Clip	-
3	Bolt	11 N.m {110 kgf.cm, 95 in.lbf}
4	Driver monitoring camera unit	-
