Remove Passenger Side Front Combination Light: Notes
WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Fogging or condensation on the inside of the front combination lights may occur due to a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights. However, it has no effect on the light performance because the temperature inside the front combination lights rises after illuminating the headlights or a period of time has elapsed.

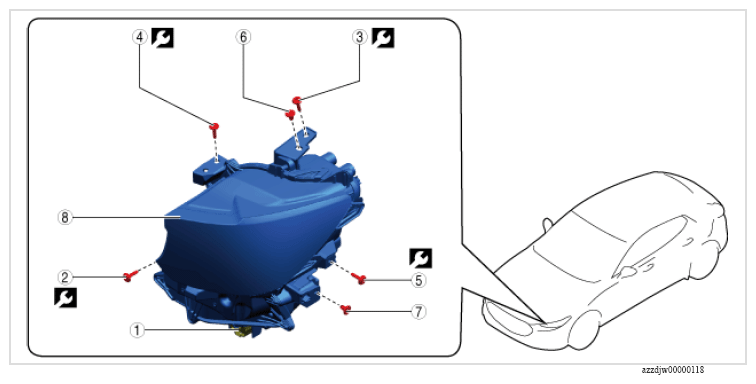

- Remove using the procedure shown in the figure.
- The figure shows the left side (same as right side).
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | |
|---|---|---|
| 1 | Connector | - |
| 2 | Bolt | 8.5 N.m {85 kgf.cm, 74 in.lbf} |
| 3 | Bolt | 8.5 N.m {85 kgf.cm, 74 in.lbf} |
| 4 | Bolt | 8.5 N.m {85 kgf.cm, 74 in.lbf} |
| 5 | Bolt | 8.5 N.m {85 kgf.cm, 74 in.lbf} |
| 6 | Fastener | - |
| 7 | Fastener | - |
| 8 | Front combination light (See Front combination light removal note ). | - |
