Remove the front bumper component: Notes
WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

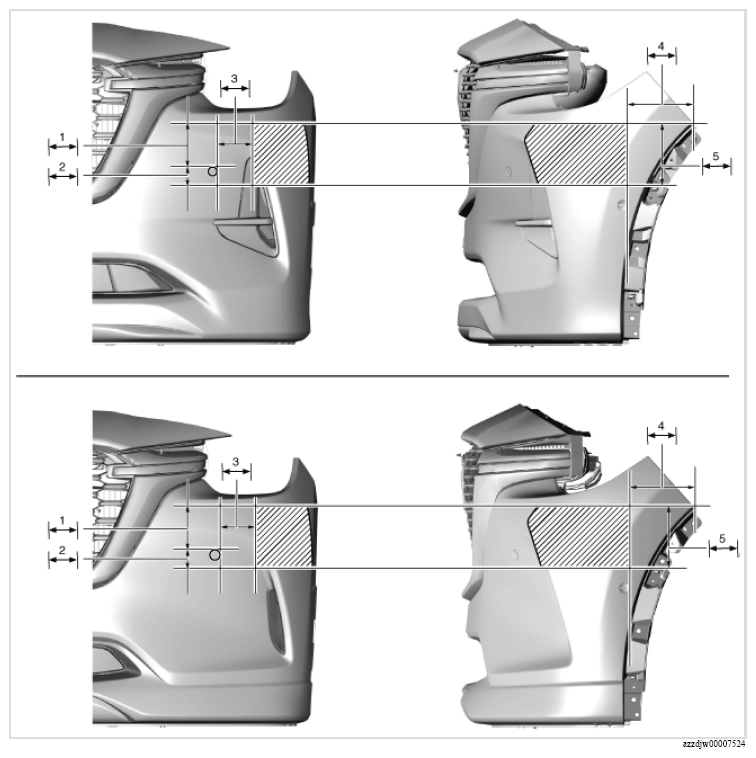

- If the radar emitting area shown in the figure is repainted, radar sensor (front side) aiming may not be performed correctly. If the radar emitting area needs to be repainted, replace the rear bumper with a new one (same as right side).
SYMBOL AND CONTENT DESCRIPTION
| Symbol | Content |
|---|---|
| Radar emitting area | |
| 102 mm {4.02 in} | |
| 47 mm {1.9 in} | |
| 82 mm {3.2 in} | |
| 146 mm {5.75 in} | |
| 148 mm {5.83 in} |
- Remove using the procedure shown in the figure.

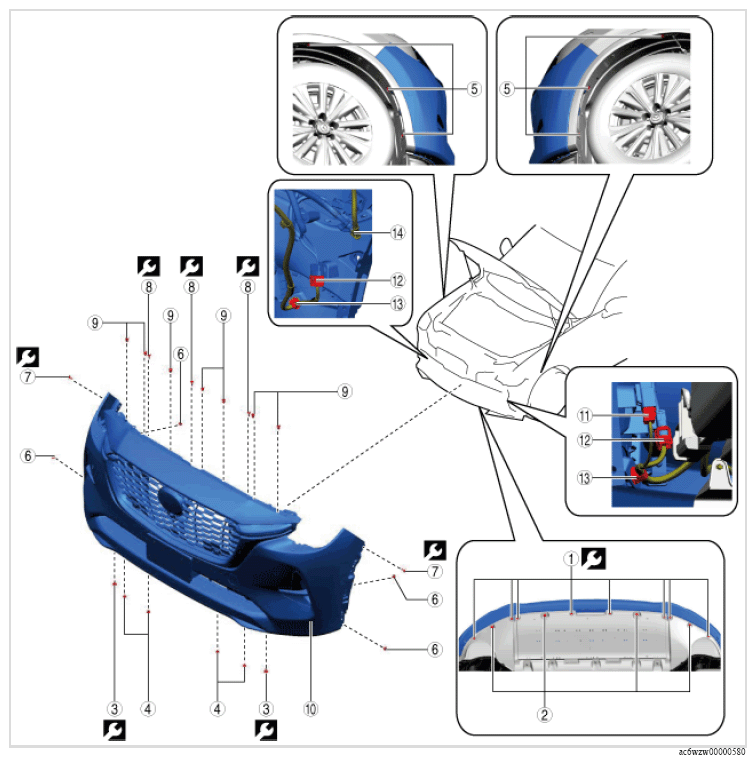

TIGHTENING TORQUE SPECIFICATION
| Step | Part name | Applicable condition | |
|---|---|---|---|
| 1 | Screw | - | 2 N.m {20 kgf.cm, 17 in.lbf} |
| 2 | Fastener A | - | - |
| 3 | Bolts A (See BOLT A REMOVAL NOTE ) | - | 8.5 N.m {85 kgf.cm, 74 in.lbf} |
| 4 | Fastener B (See FASTENER B REMOVAL NOTE ) | - | - |
| 5 | Fastener C | - | - |
| 6 | Fastener D (See FASTENER D REMOVAL NOTE ) | - | - |
| 7 | Bolts B | - | 8.5 N.m {85 kgf.cm, 74 in.lbf} |
| 8 | Bolt C | - | 8.5 N.m {85 kgf.cm, 74 in.lbf} |
| 9 | Fastener E | - | - |
| 10 | Front bumper component (See FRONT BUMPER COMPONENT REMOVAL NOTE ) | - | - |
| 11 | Connector | With 360° view monitor | - |
| 12 | Connector | - | - |
| 13 | Wiring harness clip (See WIRING HARNESS CLIP REMOVAL NOTE ) | - | - |
| 14 | Headlight washer hose | With headlight washer | - |
