Adjust Headlight Aiming

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the following servicing is done, perform the headlight aiming adjustment.
- Front combination light replacement
- Front combination light disassembly/assembly
- Any servicing which changes the vehicle height is performed, such as suspension replacement, removal, or installation.
If servicing was done which changes the vehicle height, perform the headlight auto leveling system initial setting first to record the vehicle attitude angle to the auto leveling control module/adaptive LED headlight control module, then perform headlight aiming adjustment. (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION )

Empty the vehicle except for the jack and vehicle tools.
Adjust the tire pressure to the standard. (See WHEEL AND TIRE SPECIFICATION )
Move the vehicle to level ground.
Sit on the driver-side seat alone.
Line up the vehicle with the wall.

Move the vehicle to the position shown in the diagram.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
1	Wall
2	Actual headlight center point
3	3 m {118 in}

Measure the height at the center point of the headlight.

NOTE:

Measure the height at the center point of the headlight because the vehicle height differs depending on vehicle conditions.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
1	90°
2	Actual headlight center point
3	Height measurement

Create an adjustment screen as shown in the figure.

NOTE:

The adjustment screen is made of thick white paper.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
1	Headlight center point
2	30 m {1.2 in}
3	Elbow point

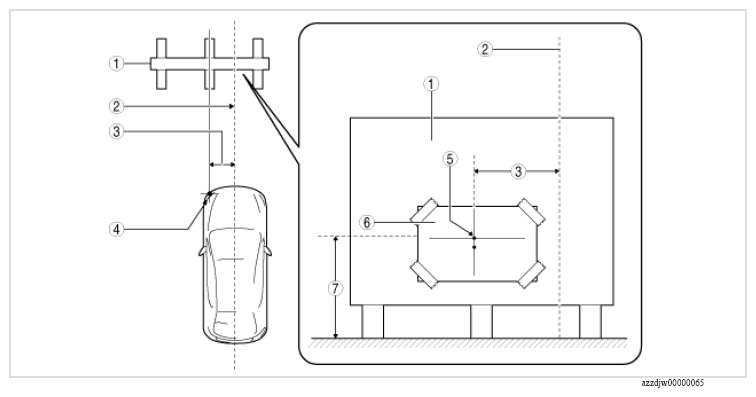

Attach the adjustment screen to the wall so that the center point of the headlight for which the adjustment screen is adjusted is aligned with the center point of the adjustment screen.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
1	Wall
2	Vehicle center
3	759.7 mm {29.91 in}
4	Actual headlight center point
5	Headlight center point
6	Adjustment screen
7	Measured height

Set a partition in front of the headlight which is not being adjusted to block the light.
Switch the main power ON (READY on).

Turn on the headlight low beams.

NOTE:

If the headlight low beams are turned on, the light as shown in the figure is emitted to the adjustment screen.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
1	Brightness border line
2	Adjustment screen

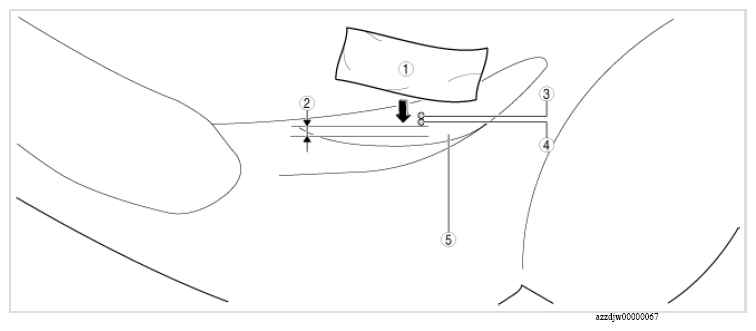

Cover the upper part of the headlight with a clean cloth so that the brightness border line becomes transparent.

NOTE:

If the headlight is covered with a clean cloth from the upper part of the headlight in the direction of the arrow shown in the figure, the yellow line disappears and the brightness border line becomes transparent.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content	Applicable condition
1	Cloth	-
2	10 mm {0.39 in} (reference)	-
3	Mark (center of lens)	With adaptive LED headlight control module
4	Mark (center of lens)	Without adaptive LED headlight control module
5	Front combination light	-

Verify if the actual elbow point of the headlight is at the elbow point position indicated on the adjustment screen.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
1	Brightness border line
2	Headlight center point
3	30 mm {1.2 in}
4	Blue line
5	Elbow point

If the elbow point of the headlight is not at the elbow point position indicated on the adjustment screen, perform the headlight auto leveling system initial setting. (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION )
- Verify if the actual elbow point of the headlight is at the elbow point position indicated on the adjustment screen again.

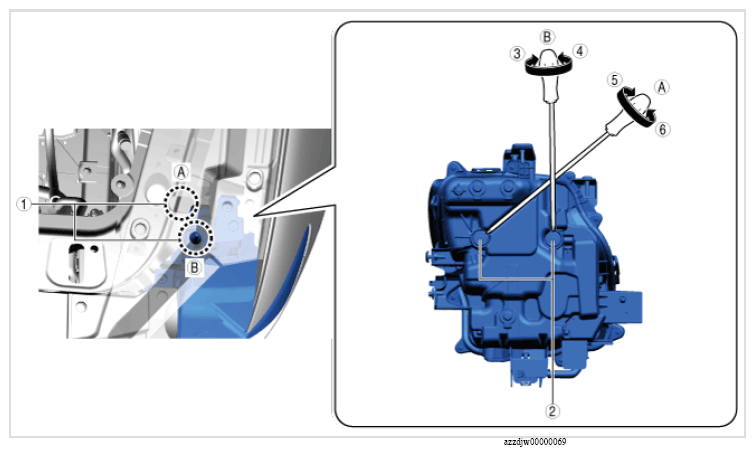

  - If the elbow point of the headlight is not at the elbow point position indicated on the adjustment screen, turn the adjustment screws and adjust the headlight.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
1	Screwdriver insertion point
2	Adjustment screw
3	Bottom (exterior)
4	Top (interior)
5	Interior
6	Exterior
