Advanced Keyless Entry System/Push Button Start System/Immobilizer System
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

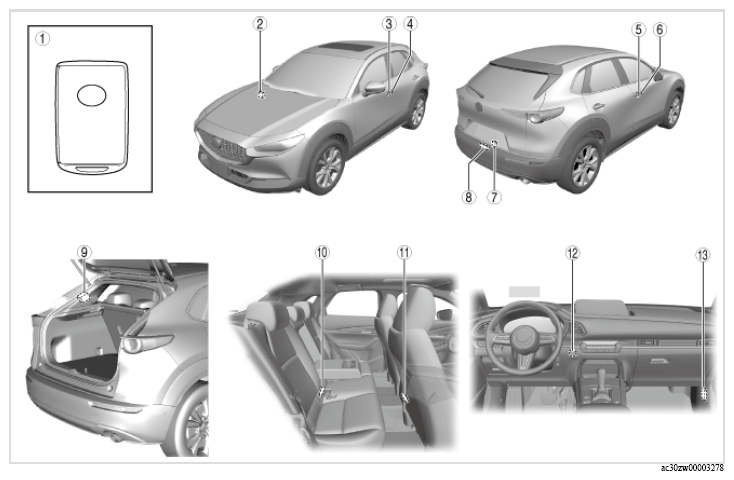

Courtesy of MAZDA MOTORS CORP. SECURITY AND LOCKS COMPONENT OPERATION
| Component No. |
Refer to |
| 1 |
Remote transmitter
(See REMOTE TRANSMITTER DISASSEMBLY/ASSEMBLY .)
(See REMOTE TRANSMITTER ID CODE REGISTRATION .)
(See CLEARING REMOTE TRANSMITTER .)
(See REMOTE TRANSMITTER BATTERY VOLTAGE INSPECTION .)
(See REMOTE TRANSMITTER POWER SAVING FUNCTION .)
(See SECURITY AND LOCKS-RELATED PARTS PROGRAMMING .)
(See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING .) |
| 2 |
Keyless beeper
(See KEYLESS BEEPER REMOVAL/INSTALLATION .)
(See KEYLESS BEEPER INSPECTION .) |
| 3 |
Keyless antenna (exterior, LF)
(See VEHICLE EXTERIOR, DRIVER'S SIDE/PASSENGER'S SIDE (WITH ADVANCED KEYLESS ENTRY SYSTEM) REMOVAL/INSTALLATION
.)
(See KEYLESS ANTENNA INSPECTION .) |
| 4 |
Touch sensor (LF)
(See TOUCH SENSOR REMOVAL/INSTALLATION .)
(See TOUCH SENSOR INSPECTION .) |
| 5 |
Touch sensor (RF)
(See TOUCH SENSOR REMOVAL/INSTALLATION .)
(See TOUCH SENSOR INSPECTION .) |
| 6 |
Keyless antenna (exterior, RF)
.
(See VEHICLE EXTERIOR, DRIVER'S SIDE/PASSENGER'S SIDE (WITH ADVANCED KEYLESS ENTRY SYSTEM) REMOVAL/INSTALLATION
.)
(See KEYLESS ANTENNA INSPECTION .) |
| 7 |
Door lock switch (exterior)
(See DOOR LOCK SWITCH REMOVAL/INSTALLATION .)
(See DOOR LOCK SWITCH INSPECTION .) |
| 8 |
Keyless antenna (exterior, rear)
(See VEHICLE EXTERIOR, REAR (WITH ADVANCED KEYLESS ENTRY SYSTEM) REMOVAL/INSTALLATION
.)
(See KEYLESS ANTENNA INSPECTION .) |
| 9 |
Keyless receiver
(See KEYLESS RECEIVER REMOVAL/INSTALLATION .)
(See KEYLESS RECEIVER INSPECTION .) |
| 10 |
Keyless antenna (interior, rear)
(See KEYLESS ANTENNA, REAR REMOVAL/INSTALLATION
.)
(See KEYLESS ANTENNA INSPECTION .) |
| 11 |
Keyless antenna (interior, front)
(See KEYLESS ANTENNA, FRONT REMOVAL/INSTALLATION
.)
(See KEYLESS ANTENNA INSPECTION .) |
| 12 |
Push button start
(See PUSH BUTTON START REMOVAL/INSTALLATION .)
(See PUSH BUTTON START INSPECTION .) |
| 13 |
LF control unit
(See LF CONTROL UNIT REMOVAL/INSTALLATION .)
(See LF CONTROL UNIT INSPECTION .) |
