Keyless entry system/Push Button Start System/Immobilizer system
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

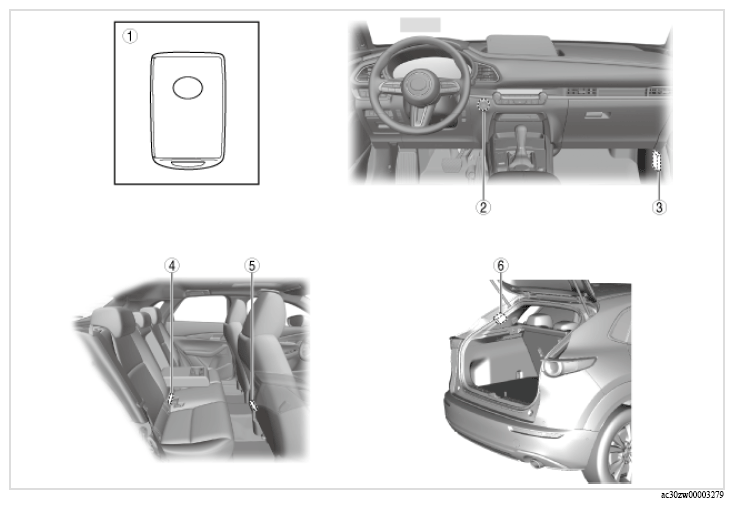

Fig 1: Security And Locks Components Location - Keyless Entry System / Push Button Start System / Immobilizer System
SECURITY AND LOCKS COMPONENT OPERATION
| Component No. | Refer to |
|---|---|
| 1 | Remote transmitter (See REMOTE TRANSMITTER DISASSEMBLY/ASSEMBLY .) (See REMOTE TRANSMITTER ID CODE REGISTRATION .) (See CLEARING REMOTE TRANSMITTER .) (See REMOTE TRANSMITTER BATTERY VOLTAGE INSPECTION .) (See REMOTE TRANSMITTER POWER SAVING FUNCTION .) (See SECURITY AND LOCKS-RELATED PARTS PROGRAMMING .) (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING .) |
| 2 | Push button start (See PUSH BUTTON START REMOVAL/INSTALLATION .) (See PUSH BUTTON START INSPECTION .) |
| 3 | LF control unit (See LF CONTROL UNIT REMOVAL/INSTALLATION .) (See LF CONTROL UNIT INSPECTION .) |
| 4 | Keyless antenna (interior, rear) (See KEYLESS ANTENNA, REAR REMOVAL/INSTALLATION .) (See KEYLESS ANTENNA INSPECTION .) |
| 5 | Keyless antenna (interior, front) (See KEYLESS ANTENNA, FRONT REMOVAL/INSTALLATION .) (See KEYLESS ANTENNA INSPECTION .) |
| 6 | Keyless receiver (See KEYLESS RECEIVER REMOVAL/INSTALLATION .) (See KEYLESS RECEIVER INSPECTION .) |
