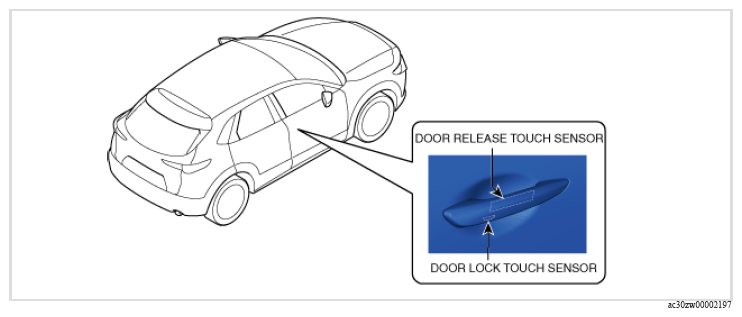

Touch Sensor Inspection: Notes
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- The integrity of the touch sensor cannot be determined from a single part. When inspecting the touch sensor, perform the following procedure.
- Connect the M-MDS to the DLC-2.
- Perform the DTC inspection for the BCM. (Refer to DTC INSPECTION
.)
)
- If DTCs are detected, repair the malfunctioning location according to the applicable DTC troubleshooting. (Refer to DTC TABLE [BCM] .) )
- If DTCs are not detected, go to the next step.
- Select the following PID and simulation items using the M-MDS.
(Refer to SIMULATION INSPECTION
.)
)
- TOUCH_SEN_LCK_L/F
- TOUCH_SEN_ULCK_L/F
- TOUCH_SEN_LCK_R/F
- TOUCH_SEN_ULCK_R/F
- Turn the simulation item on.
- Touch the touch sensor and verify that the PID values change as follows.
