Entertainment Location Index

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

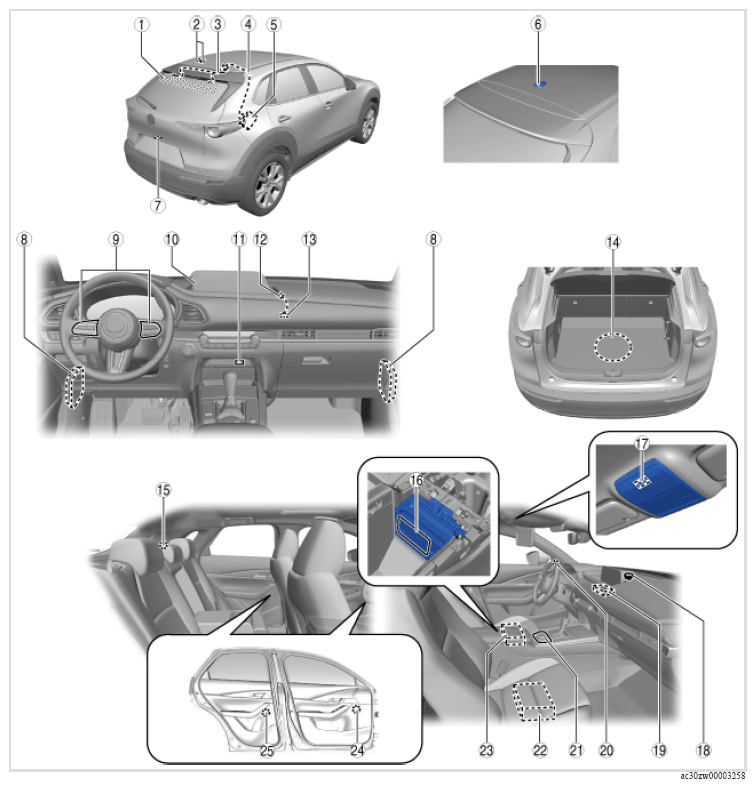

Fig 1: Entertainment Components Location

Courtesy of MAZDA MOTORS CORP.

ENTERTAINMENT COMPONENT OPERATIONS

Component No.	Refer to
1	Glass antenna (See GLASS ANTENNA INSPECTION .)
2	Condenser (See CONDENSER REMOVAL/INSTALLATION .)
3	Antenna feeder No. 2 Antenna amplifier (See ANTENNA FEEDER NO. 2 REMOVAL/INSTALLATION .) (See ANTENNA AMPLIFIER REMOVAL/INSTALLATION .)
4	Antenna feeder No. 1 Antenna amplifier (See ANTENNA FEEDER NO. 1 REMOVAL/INSTALLATION .) (See ANTENNA AMPLIFIER REMOVAL/INSTALLATION .)
5	Remote tuner (RT) (See REMOTE TUNER (RT) REMOVAL/INSTALLATION .) (See REMOTE TUNER (RT) INSPECTION .)
6	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION .)
7	Rear mount camera (See REAR MOUNT CAMERA REMOVAL/INSTALLATION .) (See REAR MOUNT CAMERA INSPECTION .)
8	Cowl side woofer (See COWL SIDE WOOFER REMOVAL/INSTALLATION .) (See SPEAKER INSPECTION .)
9	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION .) (See STEERING SWITCH INSPECTION .)
10	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION .)
11	USB port (with USB port) (See USB PORT REMOVAL/INSTALLATION .) (See USB PORT INSPECTION .)
12	Global positioning system (GPS) antenna feeder (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA FEEDER REMOVAL/INSTALLATION .)
13	Global positioning system (GPS) antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .)
14	Bass-box (with Bose ®) (See BASS-BOX REMOVAL/INSTALLATION .) (See SPEAKER INSPECTION .)
15	Rear speaker (with Bose ®) (See REAR SPEAKER REMOVAL/INSTALLATION .) (See SPEAKER INSPECTION .)
16	USB PORT/SD card slot hub (See USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION .) (See USB PORT/SD CARD SLOT HUB INSPECTION .)
17	Microphone (See MICROPHONE REMOVAL/INSTALLATION .) (See MICROPHONE INSPECTION .)
18	Front center speaker (with Bose ®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION .) (See SPEAKER INSPECTION .)
19	Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY .) (See CONNECTIVITY MASTER UNIT (CMU) INSPECTION .) (See BLUETOOTH® PAIRING PROCEDURE .) (See VEHICLE STATUS MONITOR SETTING .)
20	Tweeter (See TWEETER REMOVAL/INSTALLATION .) (See SPEAKER INSPECTION .)
21	Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION .) (See COMMANDER SWITCH INSPECTION .)
22	Audio amplifier (See AUDIO AMPLIFIER REMOVAL/INSTALLATION .) (See AUDIO AMPLIFIER INSPECTION .)
23	Parking assist unit (optical) (See PARKING ASSIST UNIT (OPTICAL) REMOVAL/INSTALLATION .) (See PARKING ASSIST UNIT (OPTICAL) INSPECTION .)
24	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .) (See SPEAKER INSPECTION .)
25	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .) (See SPEAKER INSPECTION .)
