Front Console Box Removal/Installation
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

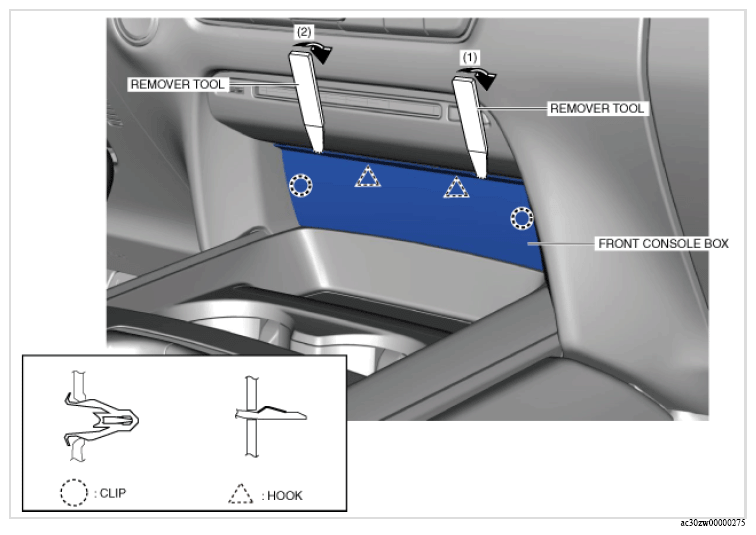

- Insert the remover tool into the positions shown in the figure, move it in the order of arrows (1), (2) and detach the clips, hooks.

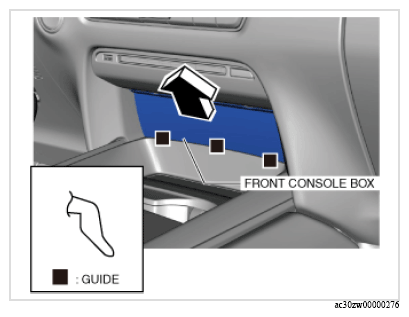

- Remove the front console box in the direction of arrow shown in the figure while detaching the guides.
- Remove the front console box.
- Install in the reverse order of removal.
