Electrical System: Fuse: Replacement

• When replacing a fuse, be sure to replace it with one of the same capacity. If a fuse malfunctions again, the circuit probably has a short and the wiring should be inspected.
• Be sure the negative battery terminal is disconnected before replacing a main fuse.

VIN M, VIN L

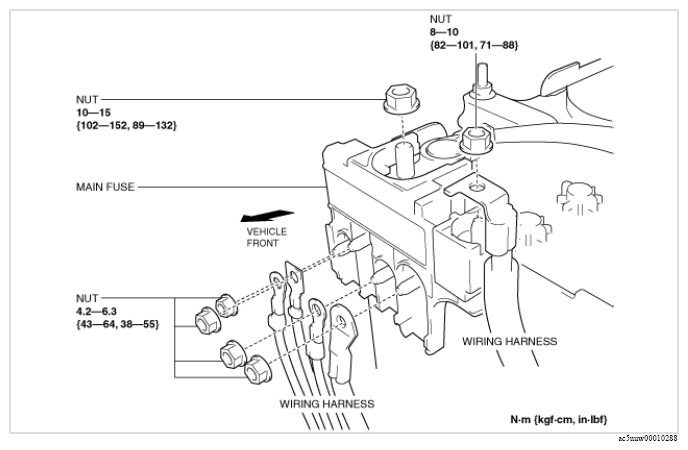

Fig 1: Main Fuse, Front And Engine Wiring Harness Or Nuts With Torque Specifications (VIN M, VIN L)

Courtesy of MAZDA MOTORS CORP.

VIN Y

Fig 2: Main Fuse, Wiring Harness Or Nuts With Torque Specifications (VIN Y)

Courtesy of MAZDA MOTORS CORP.

• When replacing a pullout fuse, use the fuse puller.

Courtesy of MAZDA MOTORS CORP.
