Intermediate Shaft Removal Note

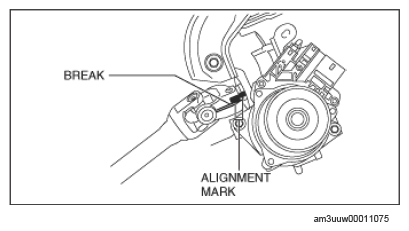

  1. Place an alignment mark across the break between the steering column and the yoke for the intermediate shaft as shown in the figure.
    G15640763Courtesy of MAZDA MOTORS CORP.
  2. Place alignment marks on the steering gear (pinion) and the intermediate shaft as shown in the figure below.
    G16331869Courtesy of MAZDA MOTORS CORP.

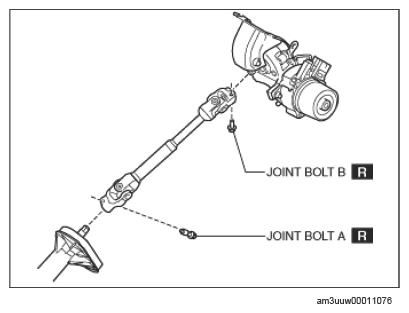

  3. Remove in the order of joint bolt A and joint bolt B.
    G15640765Courtesy of MAZDA MOTORS CORP.
  4. Remove the intermediate shaft.
