Coupling Component Removal/Installation: Notes

Oil and Chemical Type

Sealant
Type: TB1217C or equivalent
CAUTION:
  • If the characteristic value of a new coupling component is not input to the AWD control module or the characteristic value is input incorrectly after replacing the coupling component, it could result in the following conditions.
    • The system does not operate normally.
    • A problem with durability of the coupling component occurs.
    • After replacing the coupling component, read out the characteristic value of a new coupling component and write it to the AWD control module. (See COUPLING COMPONENT CALIBRATION DATA WRITING .)

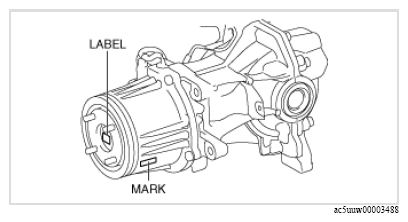

    • Read out the characteristic value of the coupling component from the label or mark shown in the figure.
G16328896Courtesy of MAZDA MOTORS CORP.
NOTE:
  • The AWD control module stores the characteristic value of the coupling component before replacement.
  • If the characteristic value of a new coupling component is not written, the AWD control module does not store the value.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Drain the rear differential oil into a container.
  3. Remove the following parts.
    1. Floor under cover No. 1 (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
    2. Floor under cover No. 2 (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  4. Remove the fasteners in the order shown in the figure.

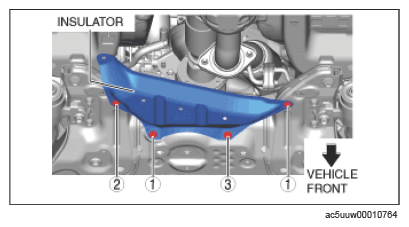

    Fig 1: Insulator Fasteners Loosening Sequence
    G15630971Courtesy of MAZDA MOTORS CORP.
  5. Remove the insulator.
  6. Remove the following parts.
    1. Brace bar

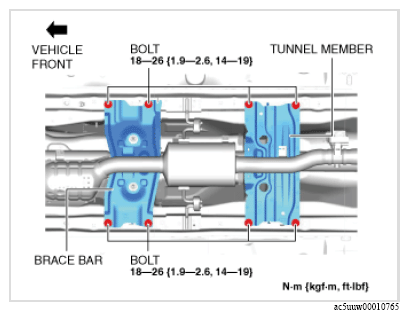

      Fig 2: Brace Bar And Tunnel Member Bolts With Torque Specification
      G16328898Courtesy of MAZDA MOTORS CORP.
    2. Tunnel member
  7. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
  8. Remove in the order indicated in the table.
  9. Install in the reverse order of removal.
  10. Add rear differential oil. (See DIFFERENTIAL OIL REPLACEMENT .)
  11. If the coupling component is replaced, write the characteristic value of a new coupling component to the AWD control module. (See COUPLING COMPONENT CALIBRATION DATA WRITING .)

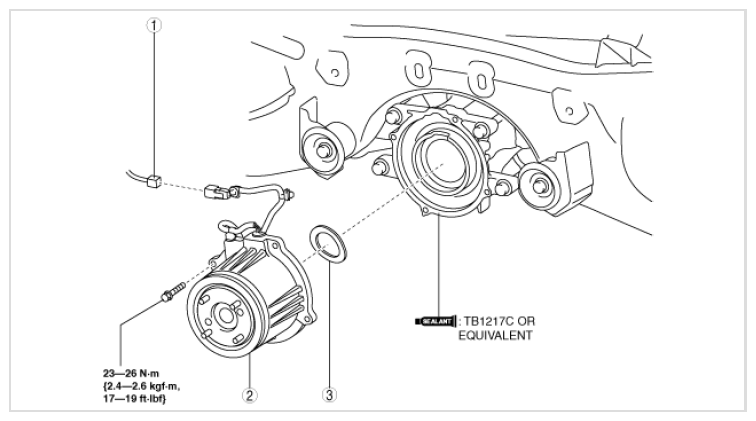

Fig 3: Coupling Components Location With Torque Specification
G16328899Courtesy of MAZDA MOTORS CORP.
1 AWD solenoid connector
2 Coupling component (See Coupling Component Removal Note .) (See Coupling Component Installation Note .)
3 Washer
