Retaining Clip Installation Note
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

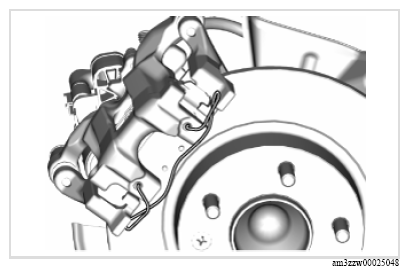

- Temporarily install the retaining clip to the rear brake caliper and rear brake mounting support as shown in the figure.

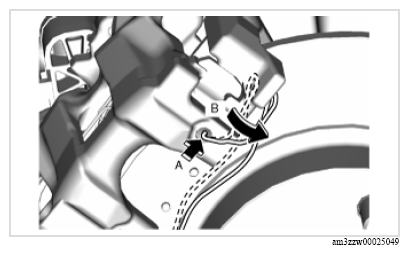

- While holding retaining clip A so that it does not detach from the rear brake caliper, install retaining clip B to the rear brake mounting support.
- Verify that the retaining clip is installed to the rear brake caliper and rear brake mounting support securely.
