1974 230 Models

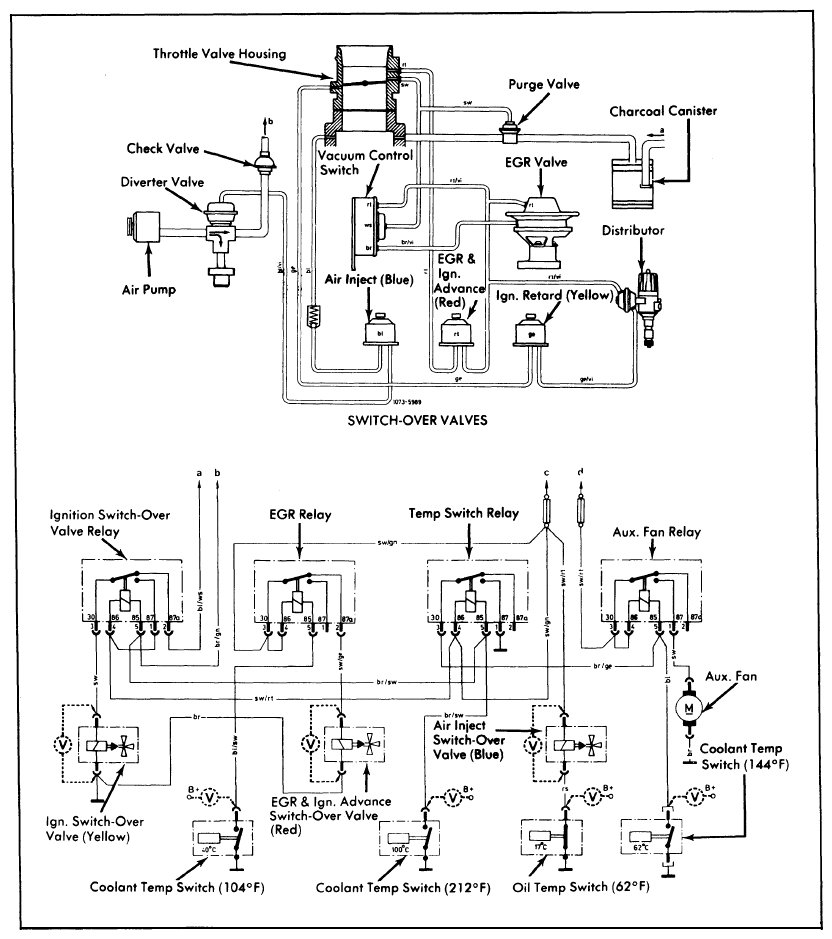

Disconnect EGR switchover valve, connect test harness, and reconnect valve. Connect voltmeter to test harness (parallel tap). Start engine and increase engine speed. Above 3600 RPM, voltmeter reading should drop to zero (0) volts. If correct voltage reading is not obtained, replace RPM relay.
