Engine Compartment
Engine Compartment

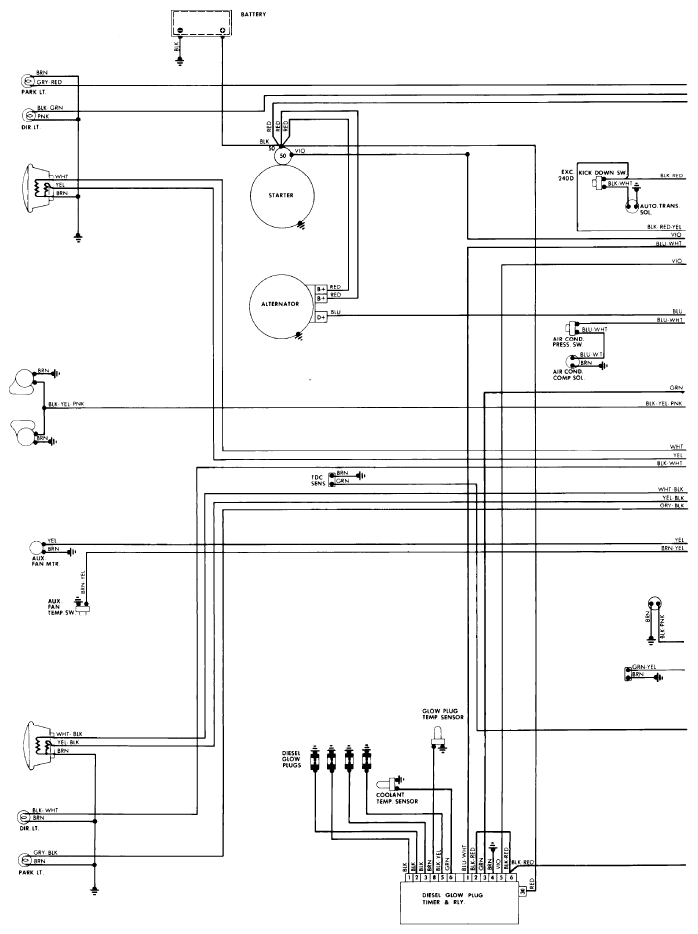

Fig 1: Wiring Diagram - Mercedes-Benz 240D DIESEL & 300D, 300CD & 300TD TURBO DIESELS (1 of 4)
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
