Wiper Switch: Installation

To install, reverse removal procedure.

To install, reverse removal procedure. Use a new steering wheel retaining screw and tighten to 60 ft. lbs. (80 N.m).

NOTE: Wiring diagram for rear wiper system on 300TD was not available.

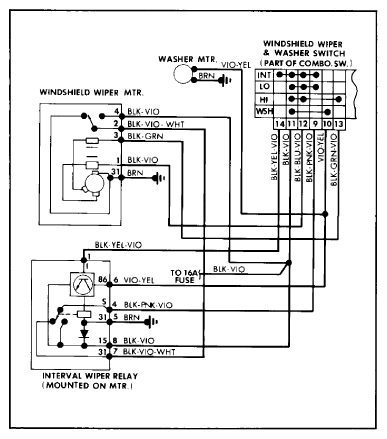

Fig 1: Mercedes-Benz Wiper System Wiring Diagram (All Models)

Courtesy of MERCEDES-BENZ USA
