MODIFIED AUTO CLIMATE CONTROL MONO-VALVE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 83/10, Date of Issue: May 1984

MODIFIED ACC MONO-VALVE

Model(s): 1980-85 Mercedes-Benz 300D Series, 380SL, 380/500SE & SEL Series with Automatic Climate Control (ACC)

Group: Climate Control

Bulletin No.: 83/10

Date: May 1984

SERVICE INFORMATION

Since November 1983 production, the mono-valve diaphragm and inner seal have been improved to resist tearing.

In addition, the insert (identified by a blue dot on top) is now available as a replacement part. When replacing an insert, be certain to include all parts as shown in Fig 1 .

IMPORTANT: Match the wide notch in the sleeve (1) to the electrical wire connection, and be sure it stays correctly positioned during installation of the insert (Fig 1 ).

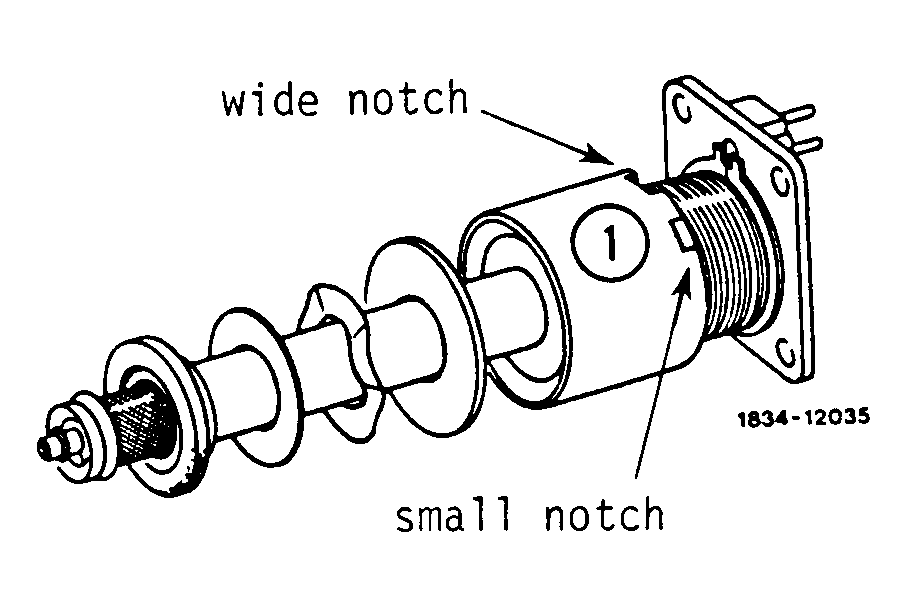

Fig 1: View of Modified ACC Mono-Valve

We strongly recommend that each time the mono-valve plug is disconnected, the pin sockets are inspected for corrosion or looseness. If corroded, they must be cleaned or replaced. If they are not corroded, they should be pinched for a good tight fit using a sharp pointed tool. This will even intermittent problems later.

PARTS INFORMATION

Part Name	Part Number
Valve Insert	000 835 06 44
