Throttle Valve Switch (TVS)

Using volt/ohmmeter, set ohmmeter on 0-infinity scale. To check full throttle speed stop, push TVS against full throttle stop. Reading should be 0. Turn TVS slightly in direction of idle, readout should move to infinity. If readings do not correspond with test, replace TVS. See Fig 1 .

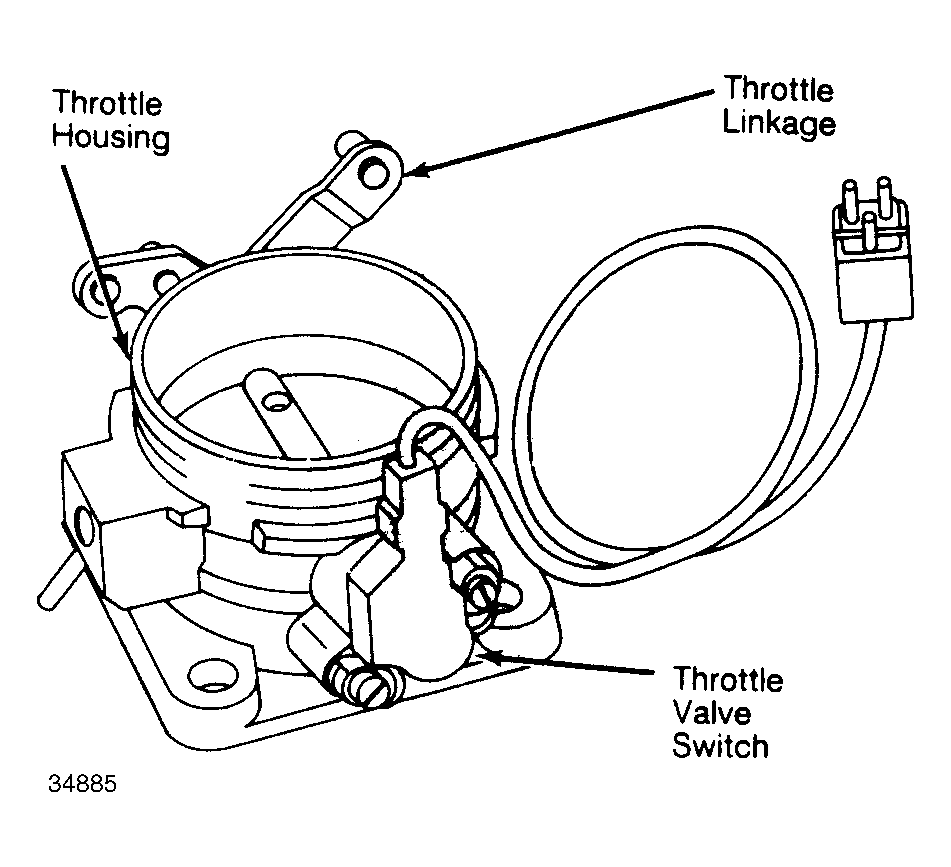

Fig 1: Throttle Valve Housing
