Maintenance Information
›
Service Point Locations
Service Point Locations

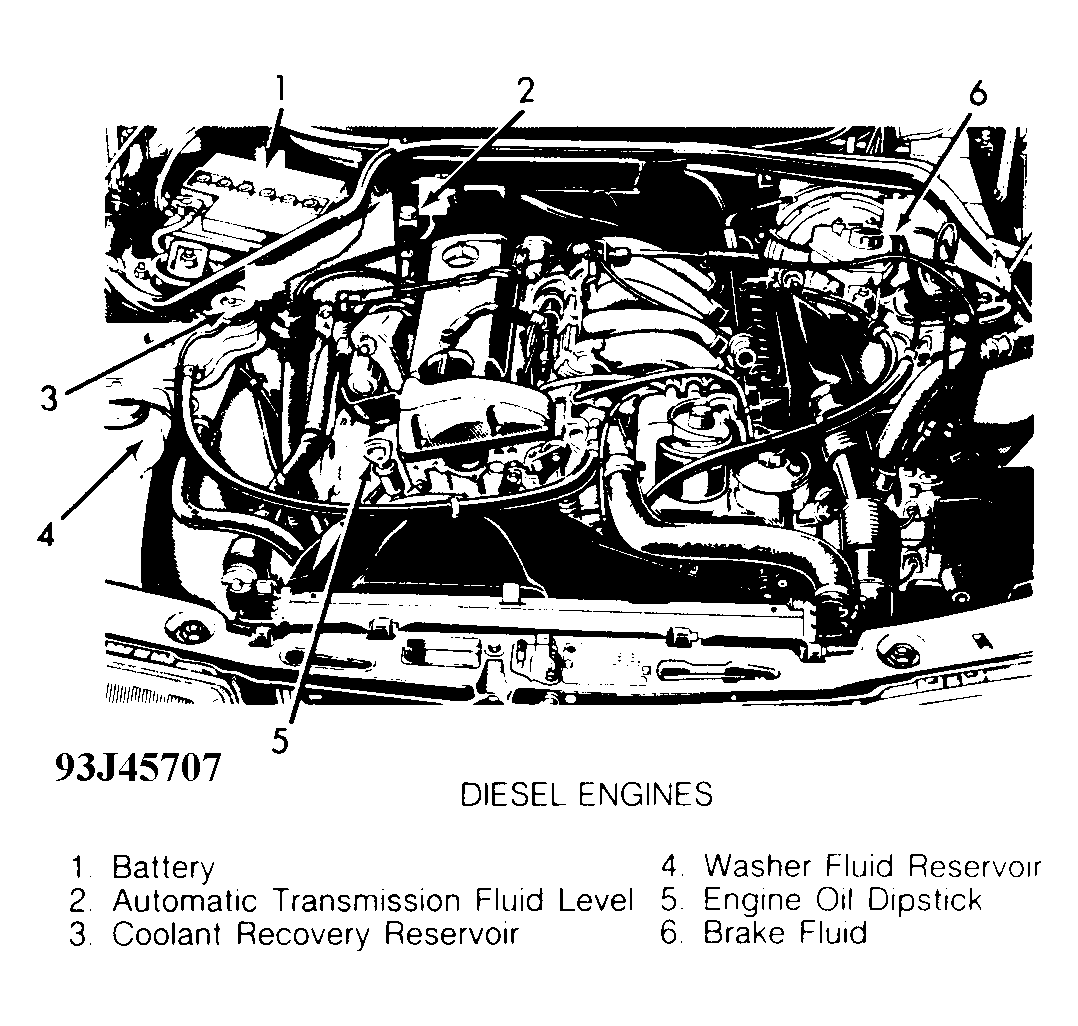

Fig 1: Service Point Locations (1984-90 Diesel Engine)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

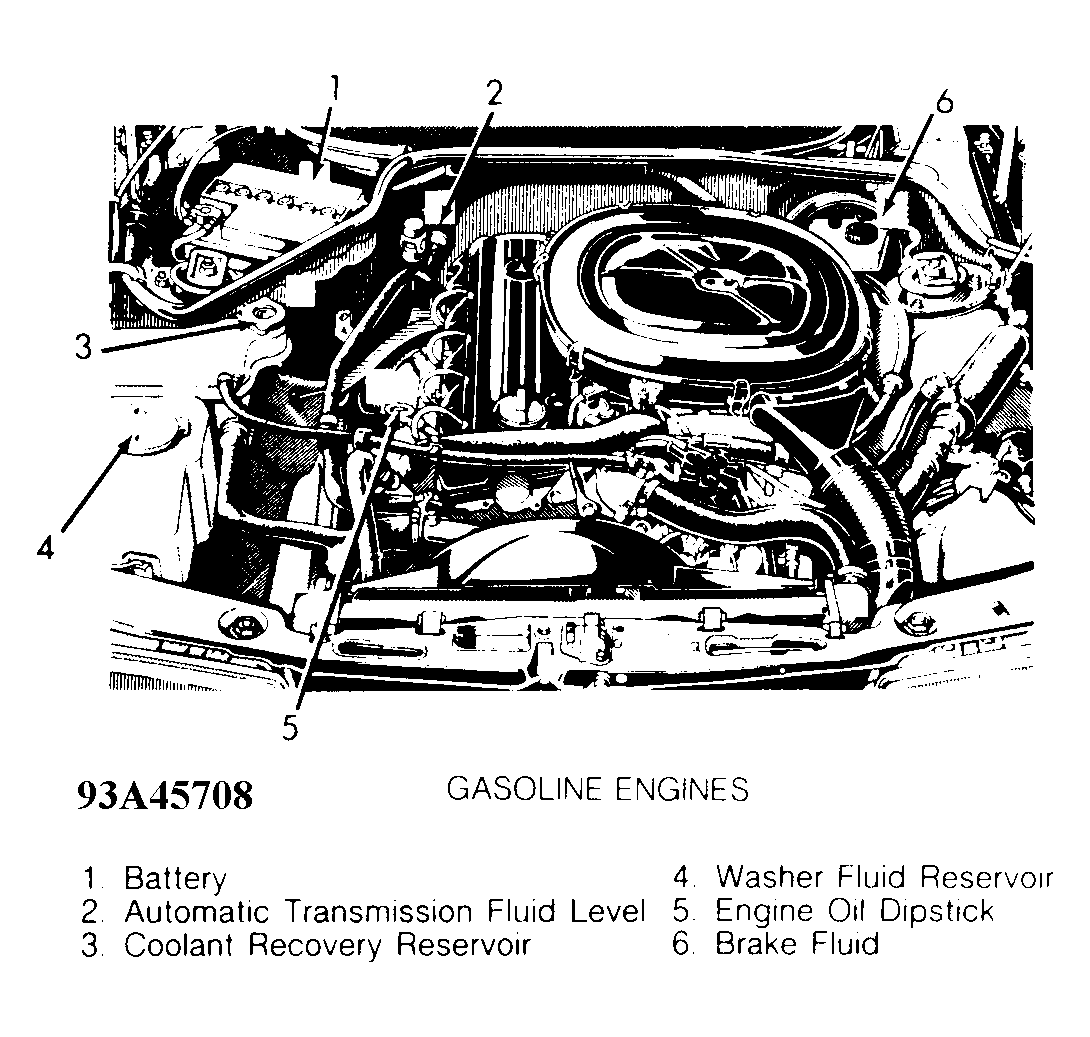

Fig 2: Service Point Locations (1984-90 Gasoline Engine)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

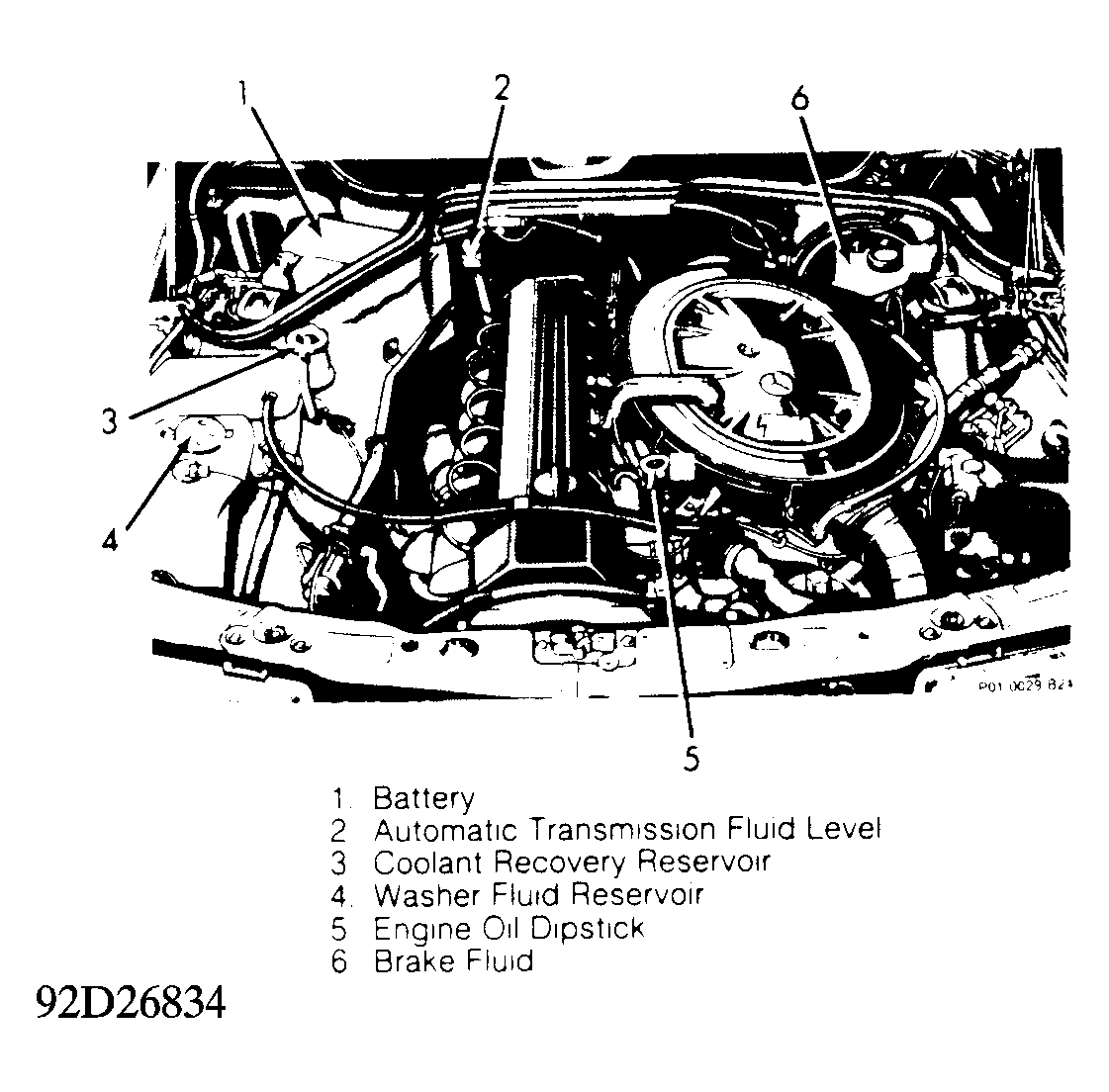

Fig 3: Service Point Locations (1991-93)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
