MODEL 126 MODIFIED FRAME CROSSMEMBER

TECHNICAL SERVICE BULLETIN

Reference Number(s): 58/70, Date of Issue: May, 1989

MODIFICATION TO CELETTE BENCH FIXTURE 326 AND CAR BENCH FIXTURE 924 16 MODEL 126

Model 1983 Mercedes-Benz 380SEC/380SEL

1983-85 Mercedes-Benz 300SD

1984-85 Mercedes-Benz 380SE/500SEC/500SEL

1986-87 Mercedes-Benz 300SDL

1986-89 Mercedes-Benz 420SEL/560SEC/560SEL

1988-89 Mercedes-Benz 300SE/300SEL

Section: Body

Bulletin No.: 58/70

Date: May, 1989

SERVICE INFORMATION

On model 126 vehicles, a modified bracket for the frame crossmember is installed (see Fig 1 , arrow).

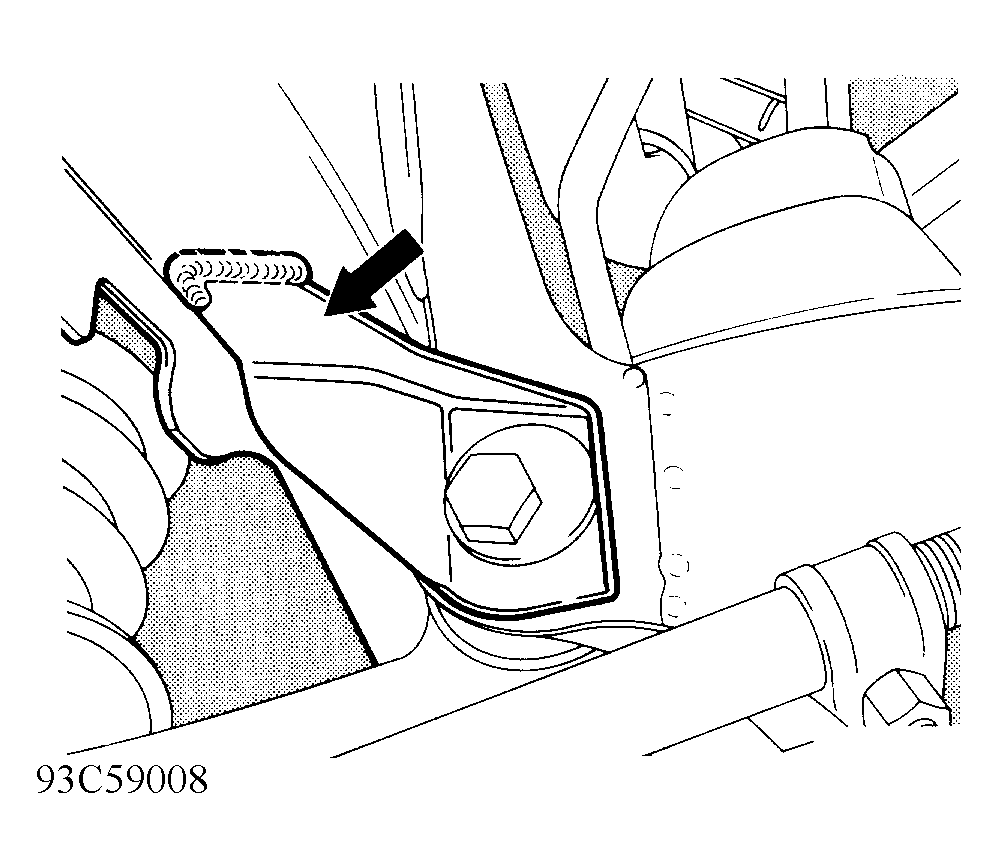

Fig 1: Modified Frame Crossmember Bracket

In case of collision repairs requiring the use of a bench fixture, the fixtures (10 and 11) for the right and left front longitudinal frame members must therefore be modified. Remove the shaded area according to the dimensions (given in mm) shown in Fig 2 .

Fig 2: Fixture Modification
