Wiring Diagrams

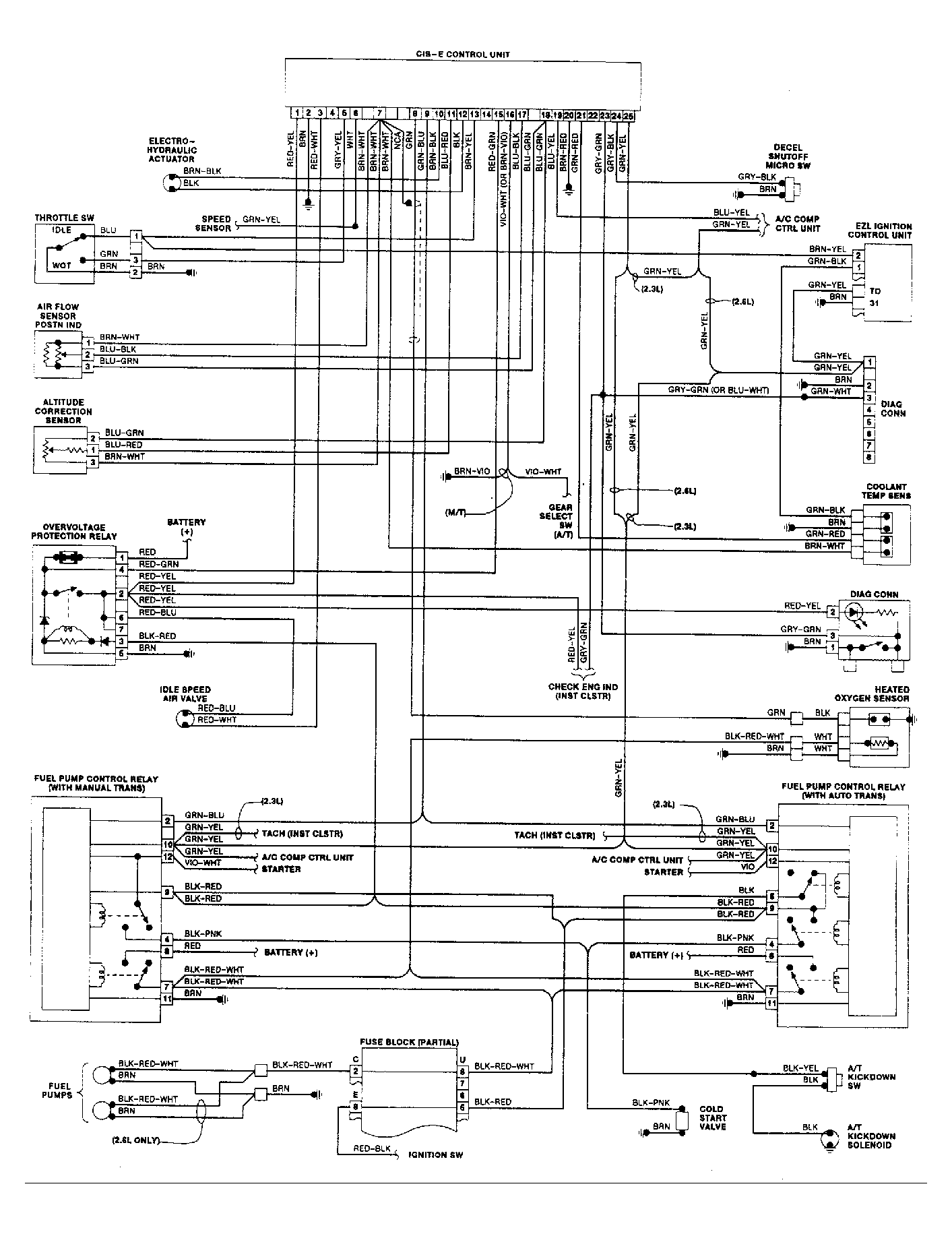

Fig 1: Wiring Diagram For 190E 2.3L & 2.6L (Calif.)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

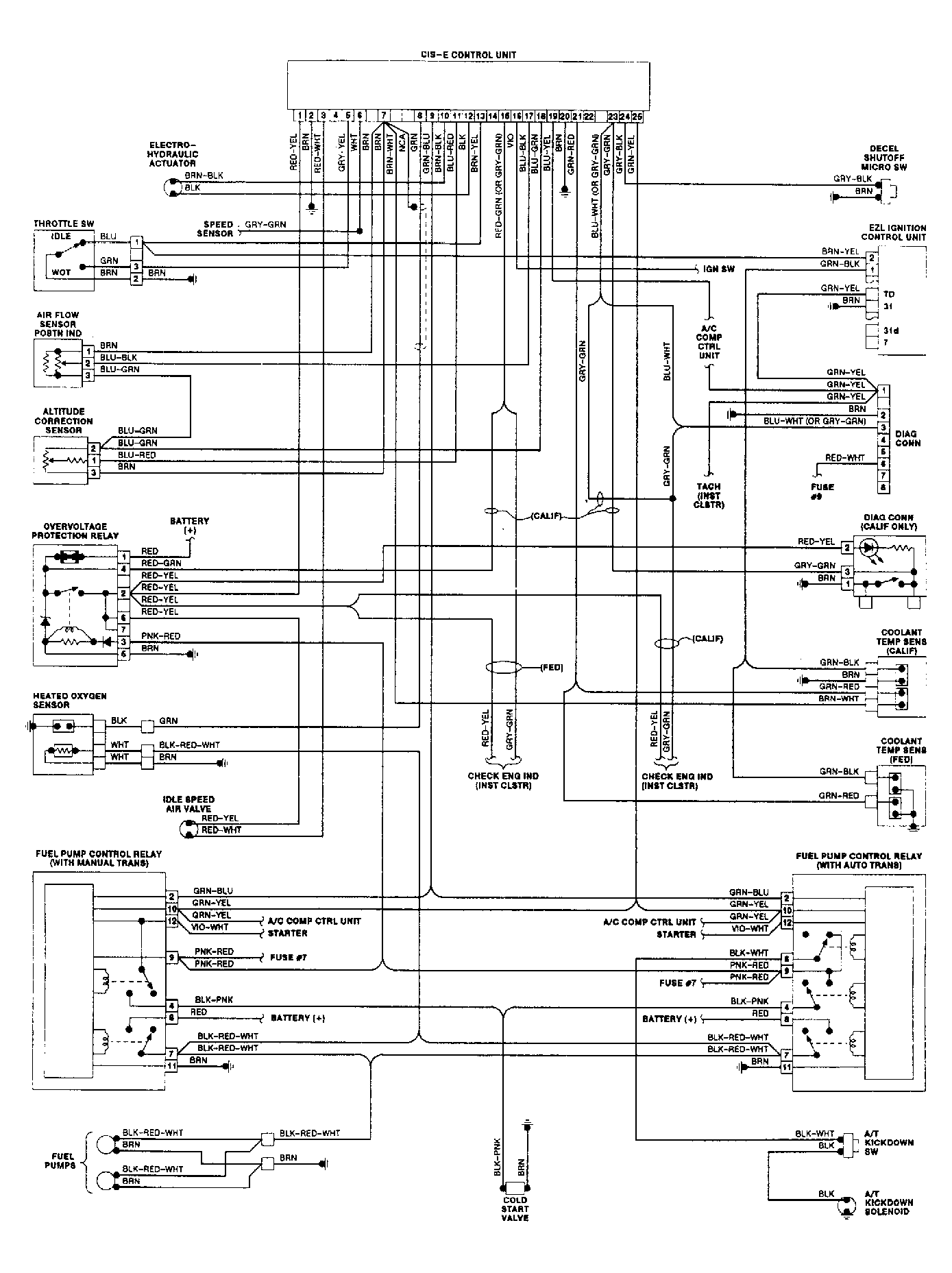

Fig 2: Wiring Diagram For 190E 2.3L & 2.6L (Fed.)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

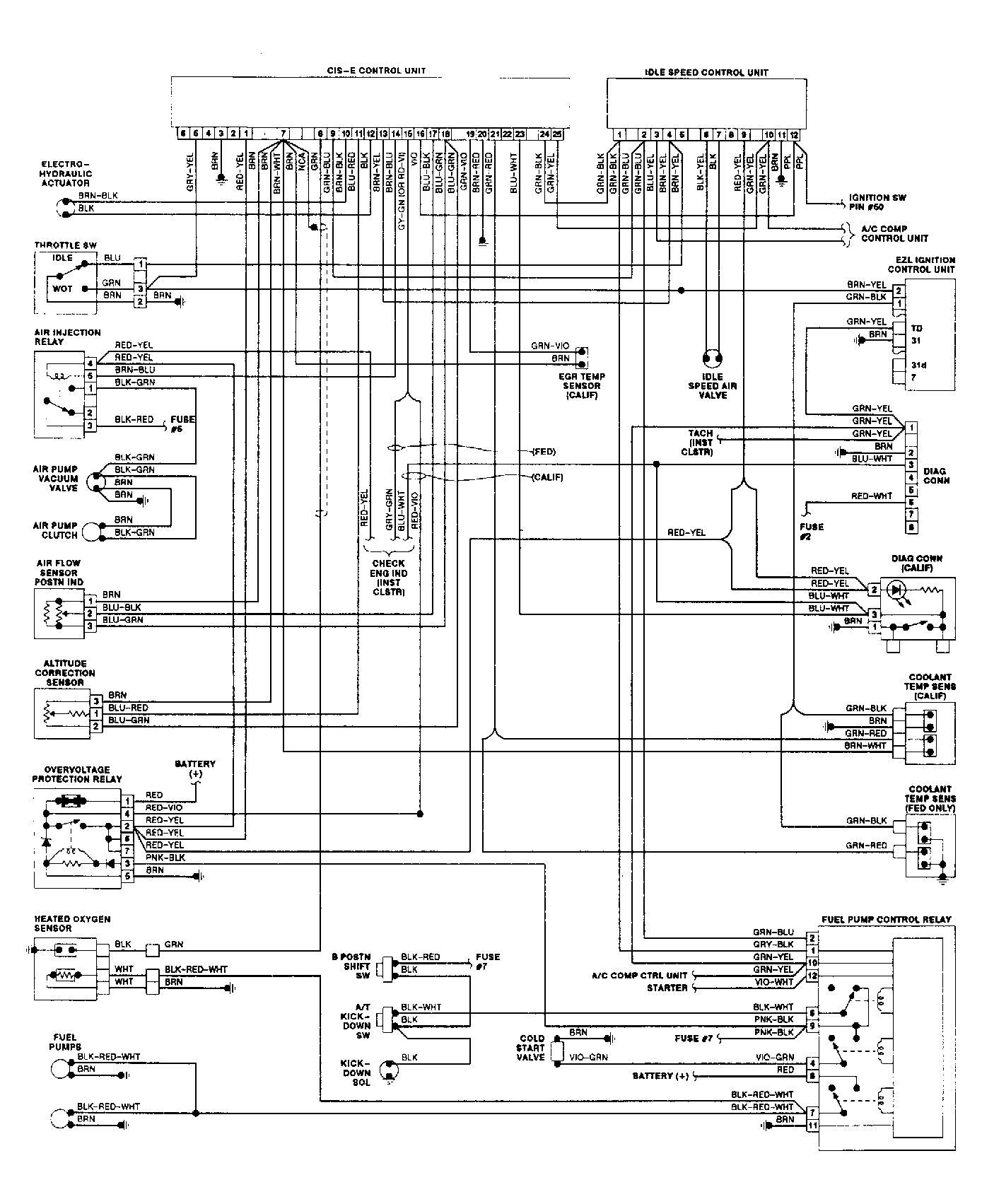

Fig 3: Wiring Diagram For 260E, 300E, CE & TE

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

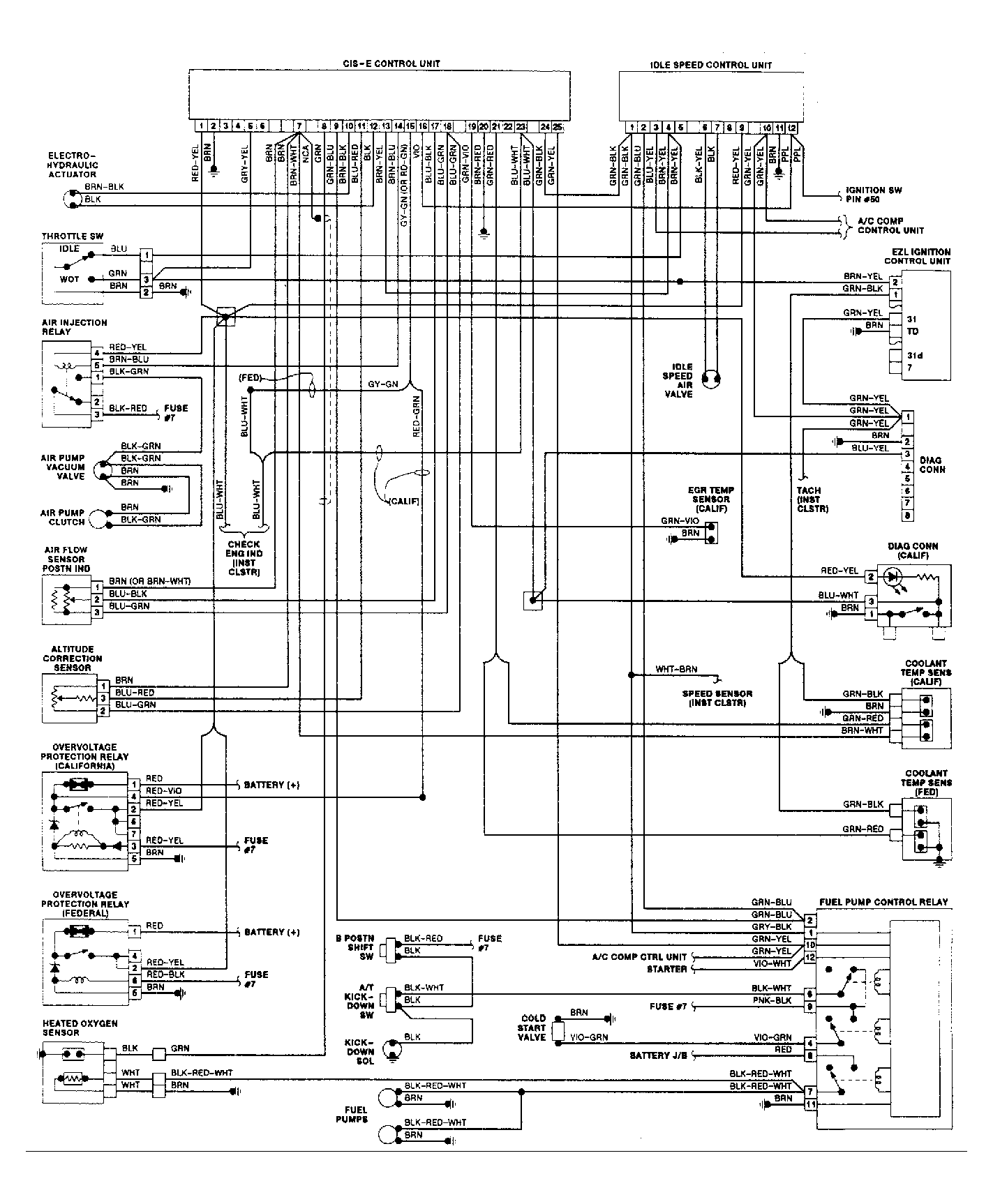

Fig 4: Wiring Diagram For 300 SE & SEL

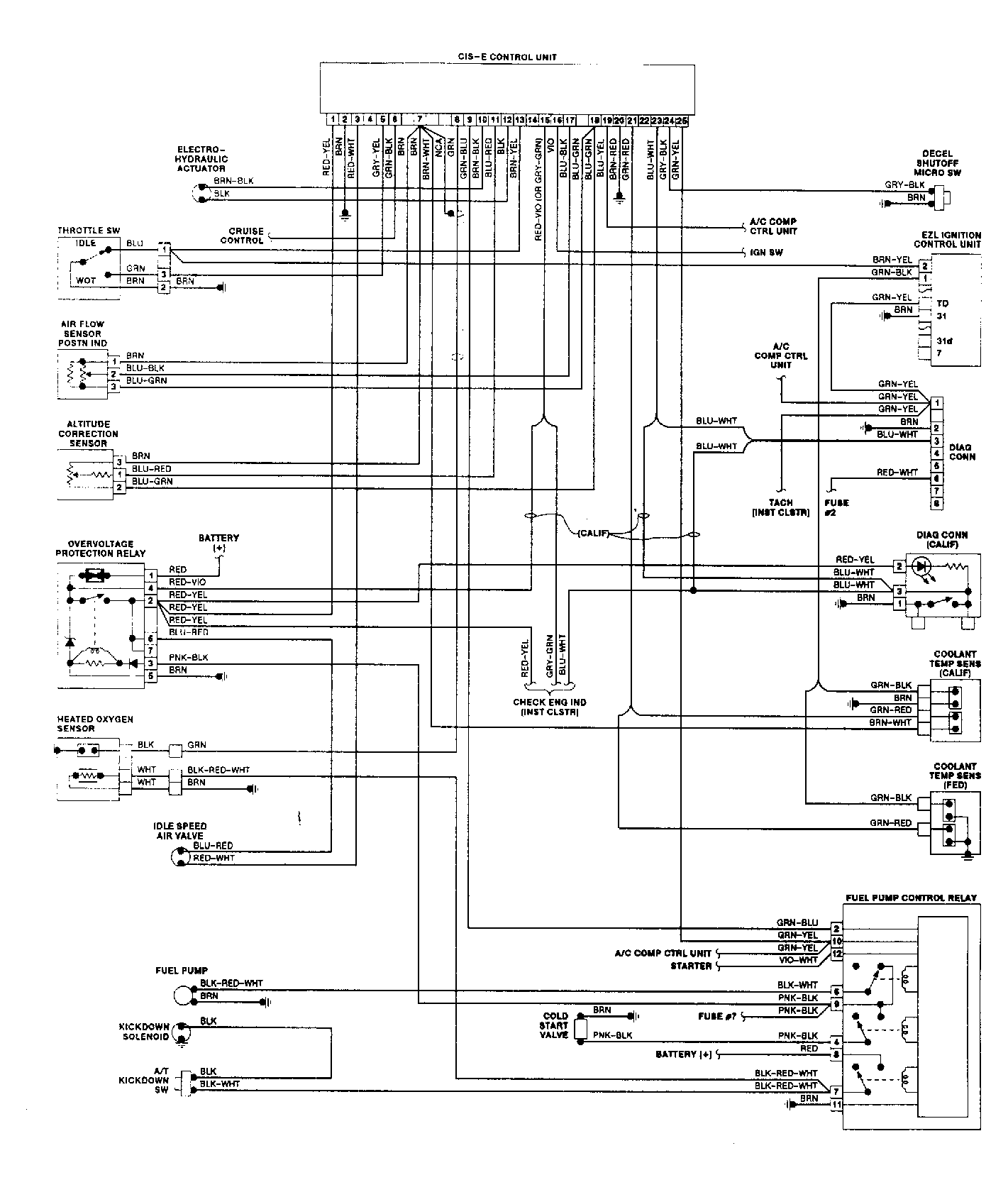

Fig 5: Wiring Diagram For 420 & 560 Series (Exc. 560SL)

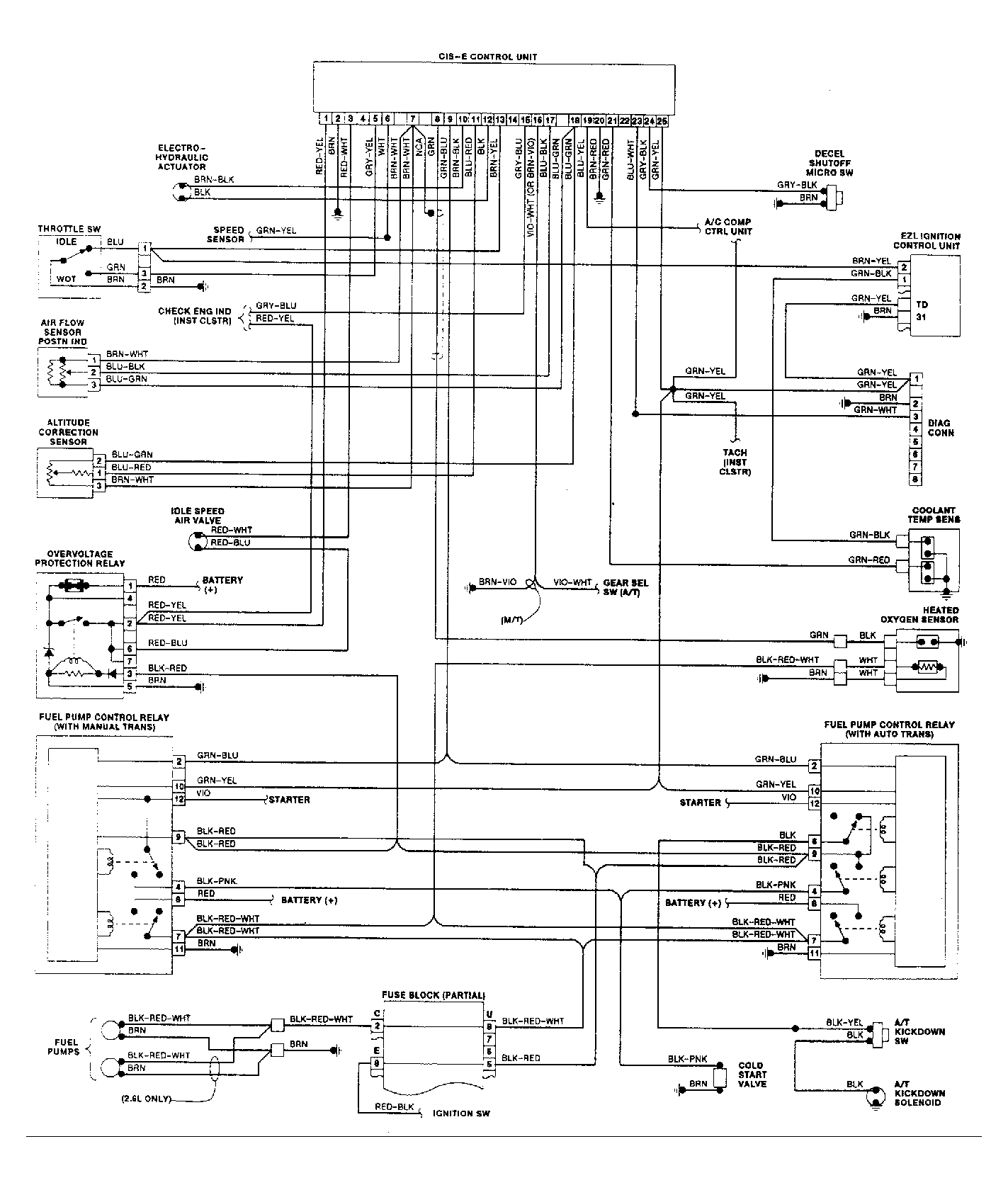

Fig 6: Wiring Diagram For 560SL
