Testing Coolant Temperature Sensor

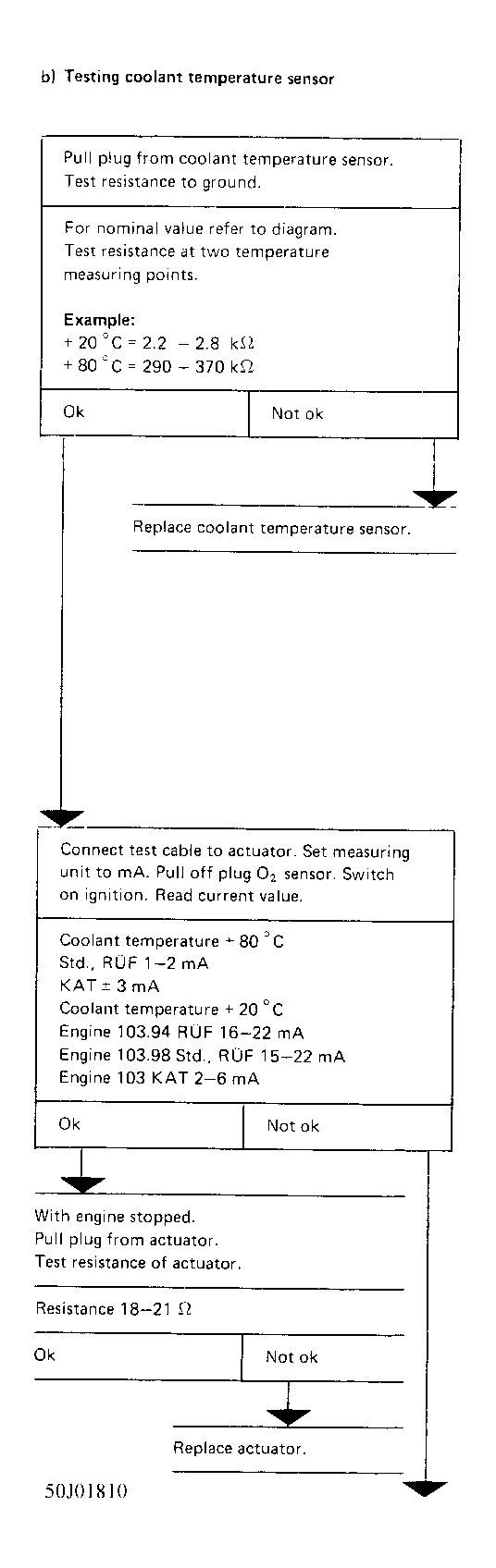

Fig 1: Testing Coolant Temperature Sensor (Flow Chart 1 of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 2: Testing Coolant Temperature Sensor (Flow Chart 2 of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 3: Testing Coolant Temperature Sensor, ECU Connector Id

Courtesy of MERCEDES-BENZ OF NORTH AMERICA
