Testing DECEL Shutoff
Testing DECEL Shutoff

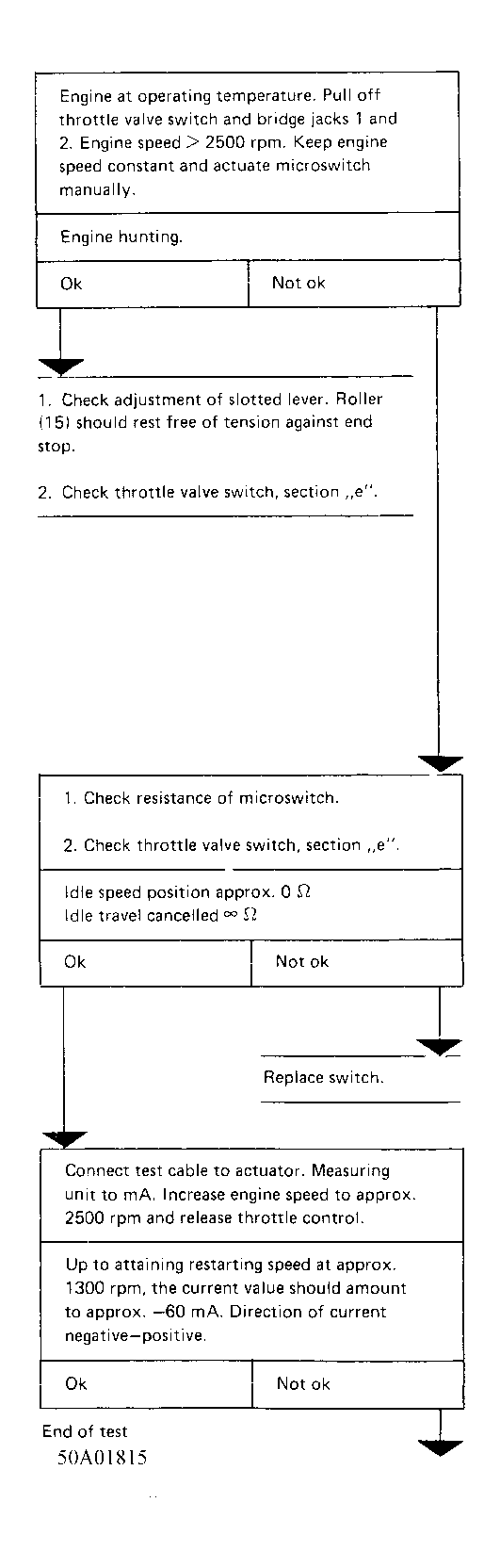

Fig 1: Testing Decel Shutoff (Flow Chart 1 of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Fig 2: Testing Decel Shutoff (Flow Chart 2 of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Fig 3: Testing Decel Shutoff, ECU Connector Id
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
