Testing Throttle Valve Switch

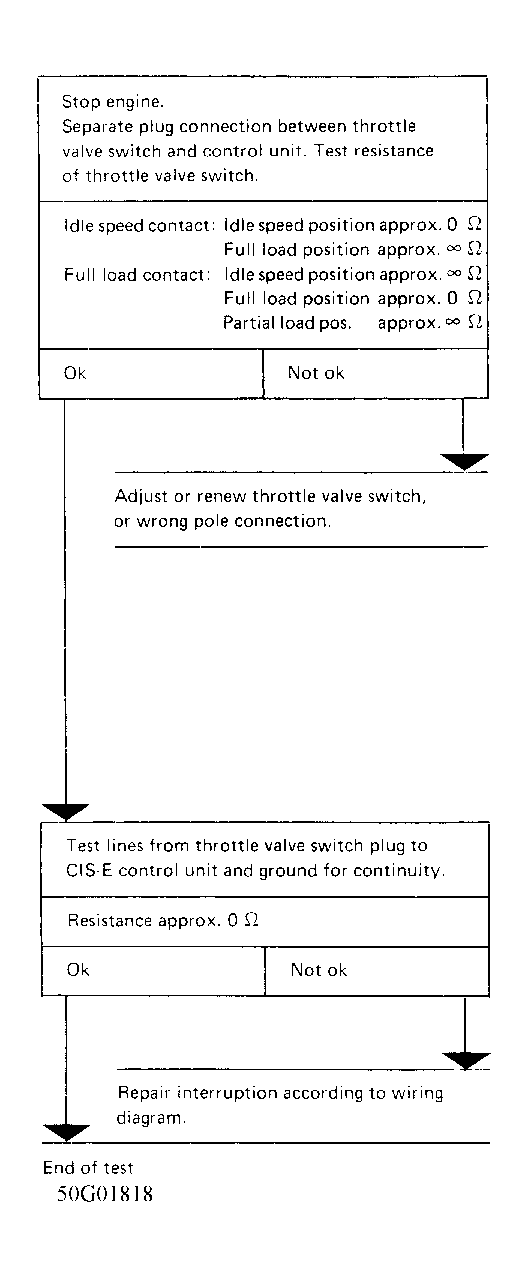

Fig 1: Testing Throttle Valve Switch, Flow Chart

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 2: Testing Throttle Valve Switch, Schematic

Courtesy of MERCEDES-BENZ OF NORTH AMERICA
