RE-START DELAY RELAY APPLICATIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 15/40, 15/45, Date of Issue: March 1991
Superceded Bulletin(s): 15/40, Date of Issue: December 1989

MODELS 124.030/090, 126.024/025 AND 201.029 WITH AUTOMATIC TRANSMISSION - NON-REPEAT IGNITION LOCK RELAY

Model(s): 1989-on Mercedes-Benz 190 E, 300E, 300 SE, 300 SEL, 300 TE

Group: 15 - Engine Electrical System: Charging, Ignition, Preglow, Starter

Bulletin No.: 15/45

Date: March 1991

NOTE: T his bulletin supersedes Service Information No. 15/40 dated December 1989.

SERVICE INFORMATION

NOTE: This S.I. includes additional effective serial numbers and the 201.029 model applicability for the relay.

During May through August 1989, and as of January and April 1990 production, a relay with restart delay has been installed as a large-scale test.

EFFECTIVE SERIAL NUMBER RANGE

Model	Chassis End No. From May to August 1989	Chassis End Number From From January April 1990
124.030	B 013064 - 050849	B236868
124.090	F 111909 - 120344	F135863
126.024/025	A 481715 - 495835	-------
201.029	-------- ------	F702661

The relay causes a 2 second delay between the first and any subsequent starting attempts allowing the flywheel ring gear to come to complete rest, preventing damage to the starter pinion and ring gear teeth.

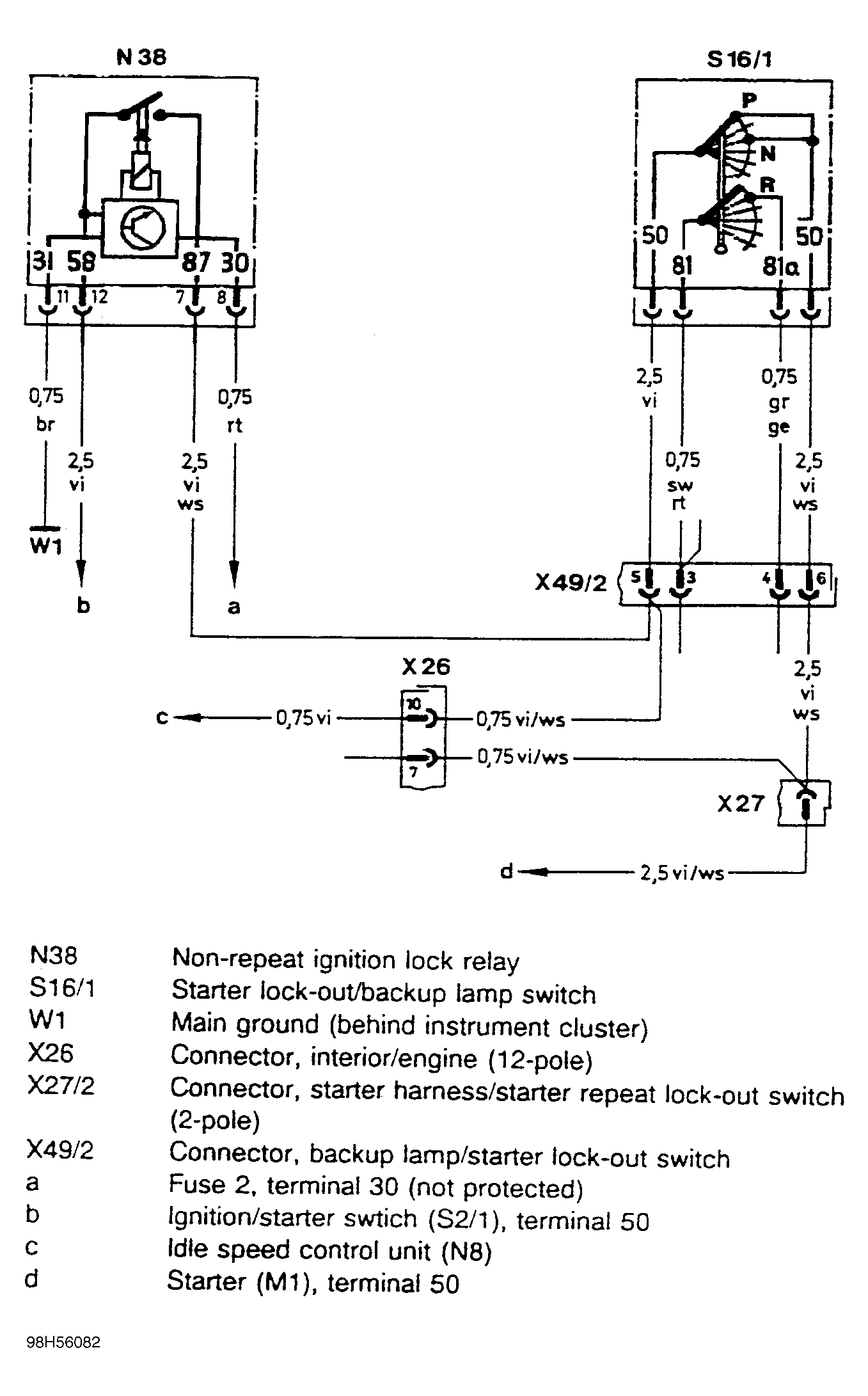

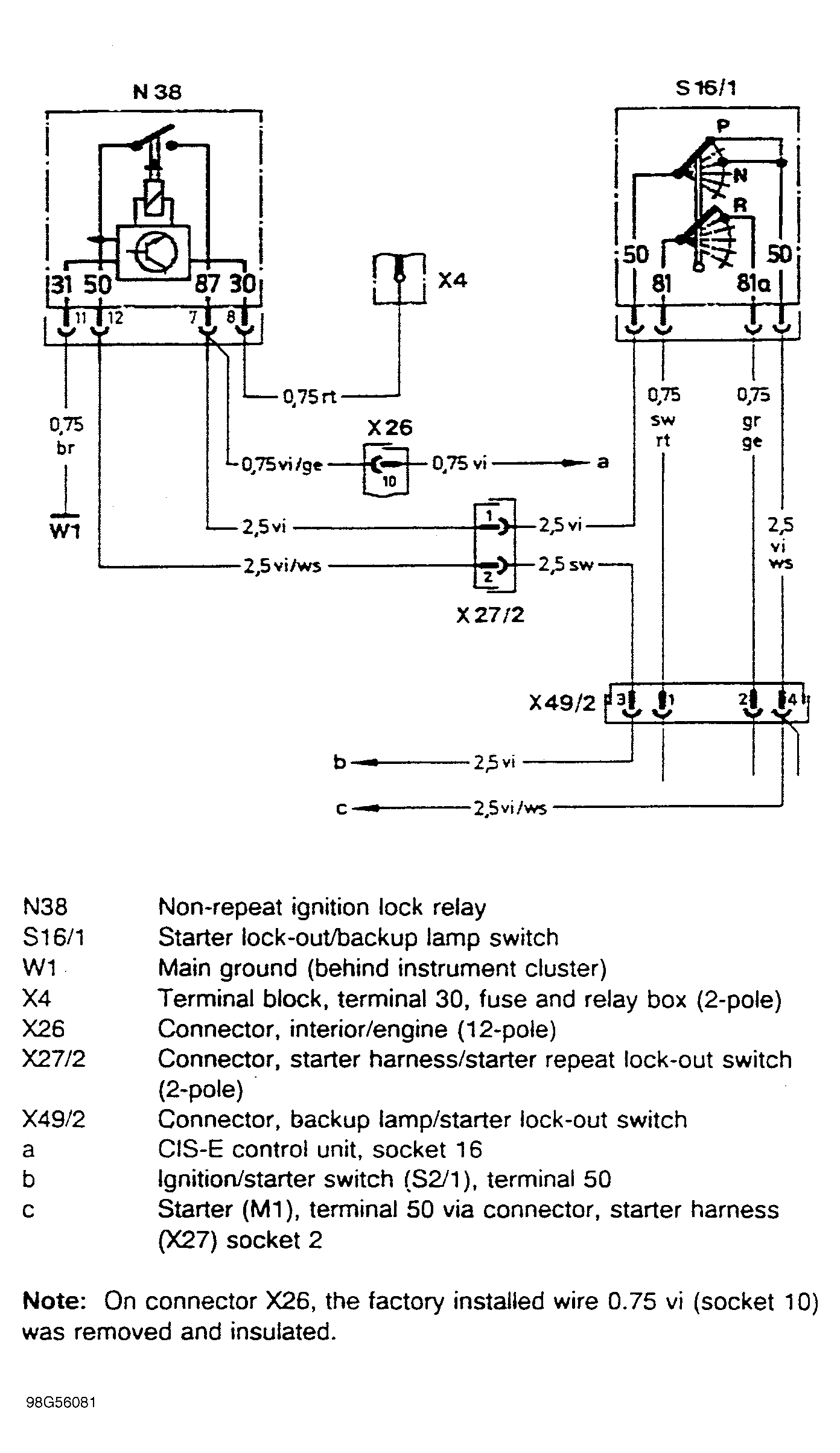

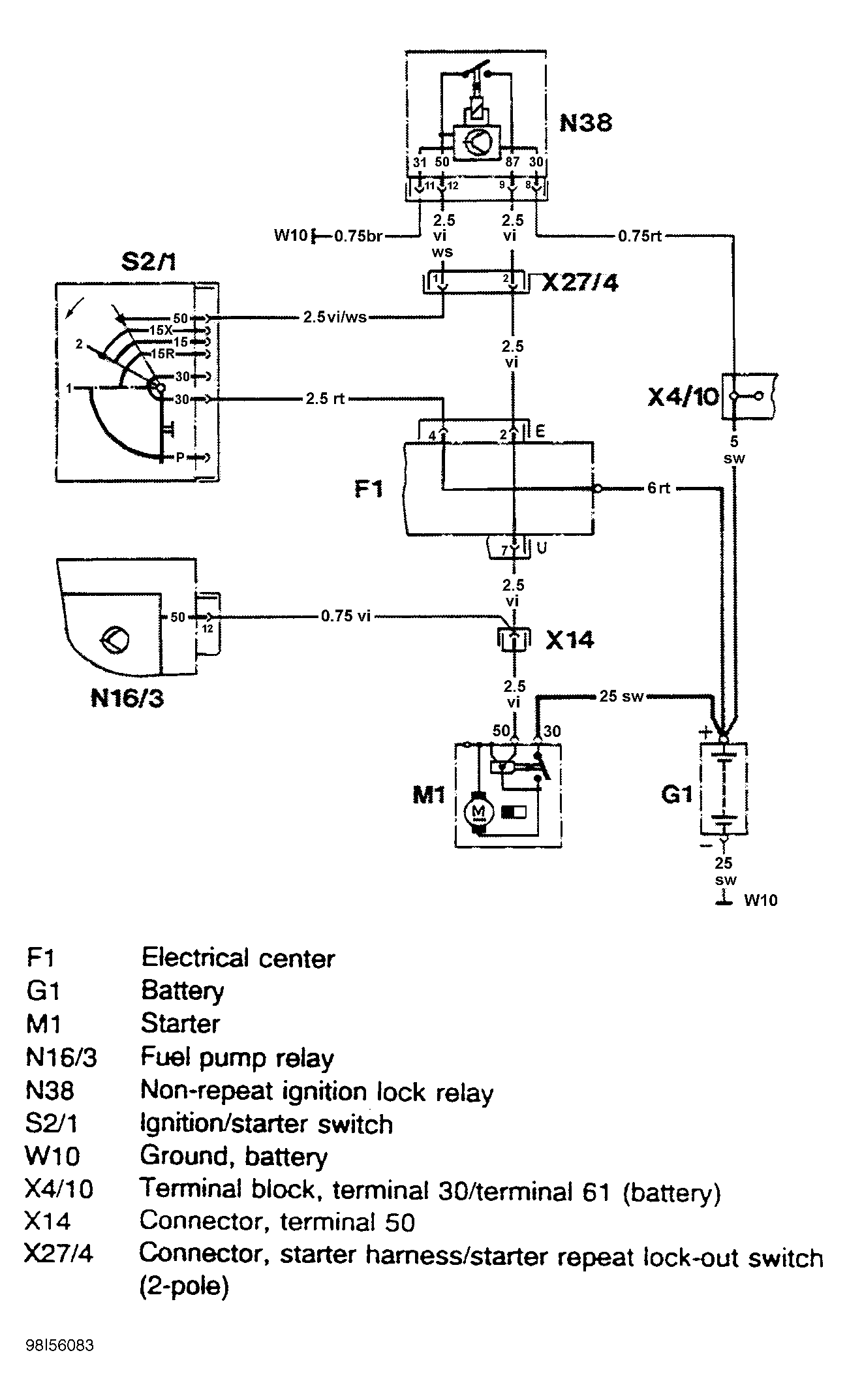

When repairs are necessary, use the following wiring diagrams. The relay is available as a spare part, but the wiring harness is not available. if the harness becomes defective, repair it if practical, or if beyond repair, remove the re-start delay relay and harness, and connect the wiring as shown in the Electrical Troubleshooting Manual, page 113 model 124, page 105 model 126.

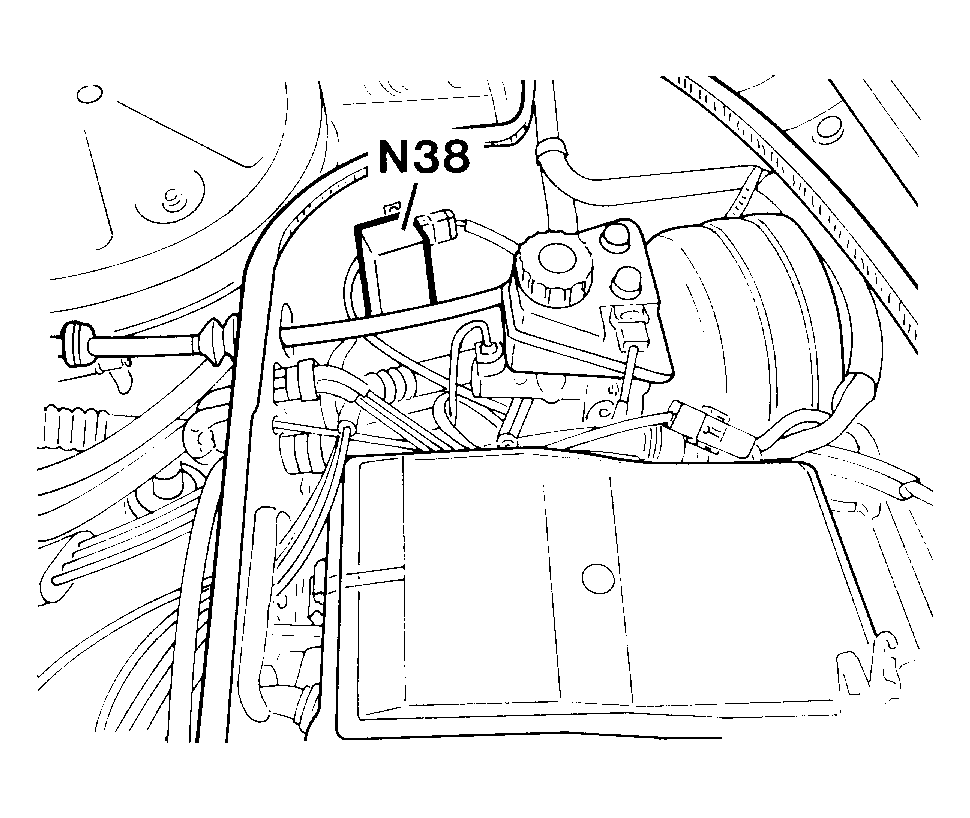

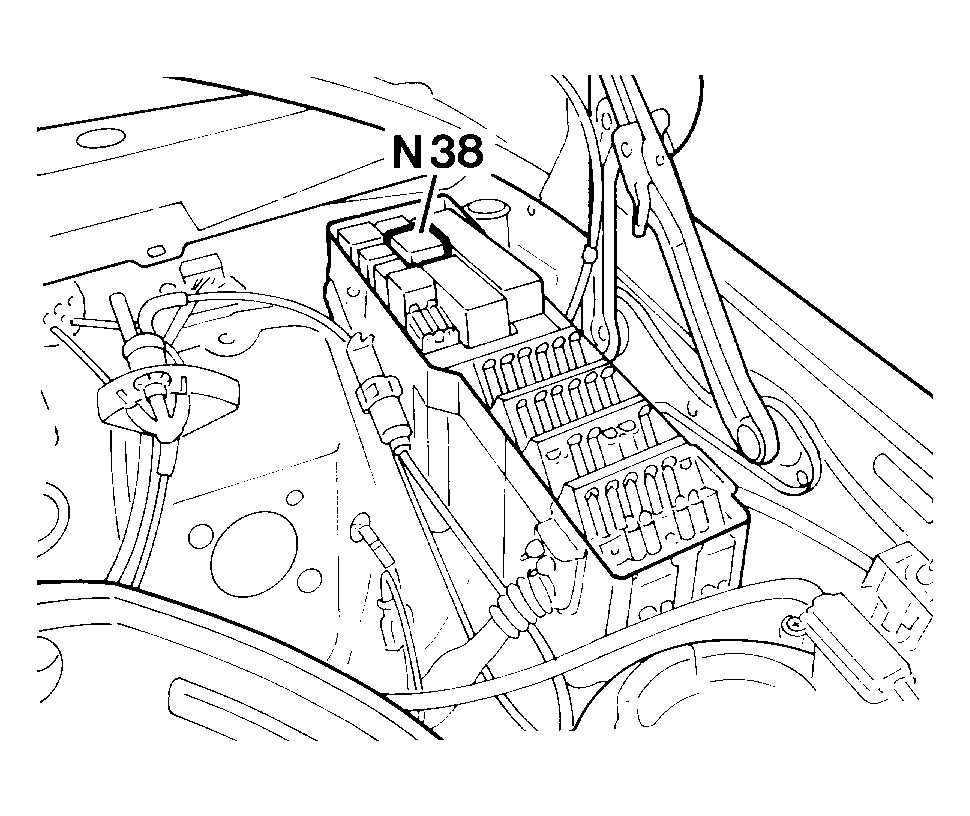

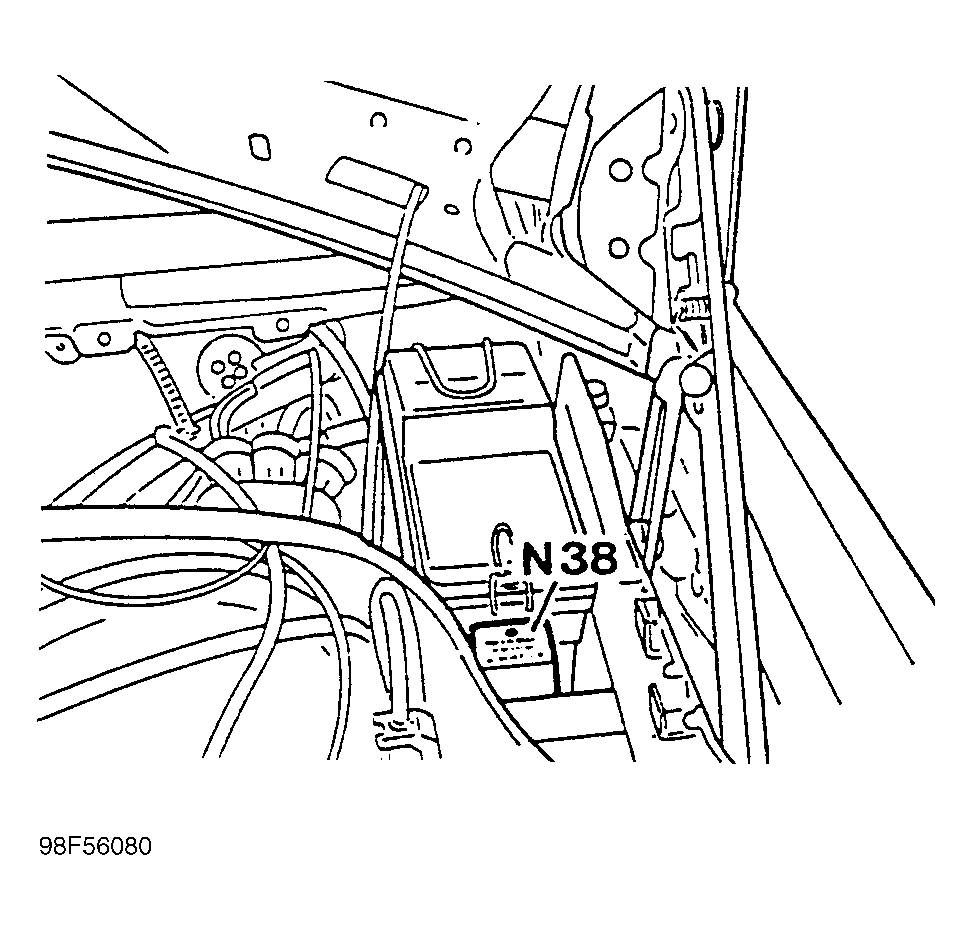

NOTE: Vehicles with non-repeat ignition feature can be identified by the relay (Figs. Fig 1 to 3).
