Component Locations

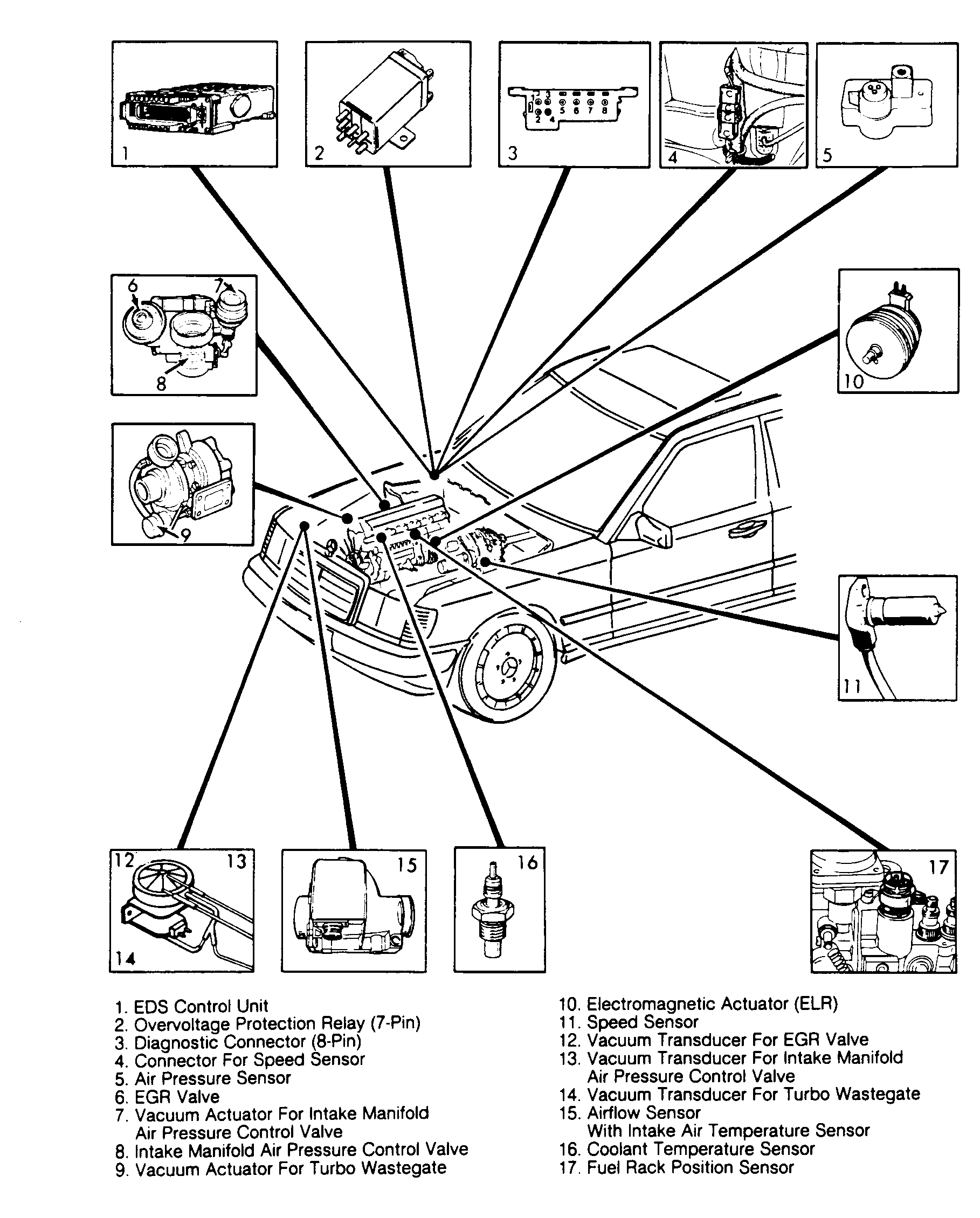

Fig 1: Locating Diesel Components (300D 2.5L 5-Cylinder)
G91G17448Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

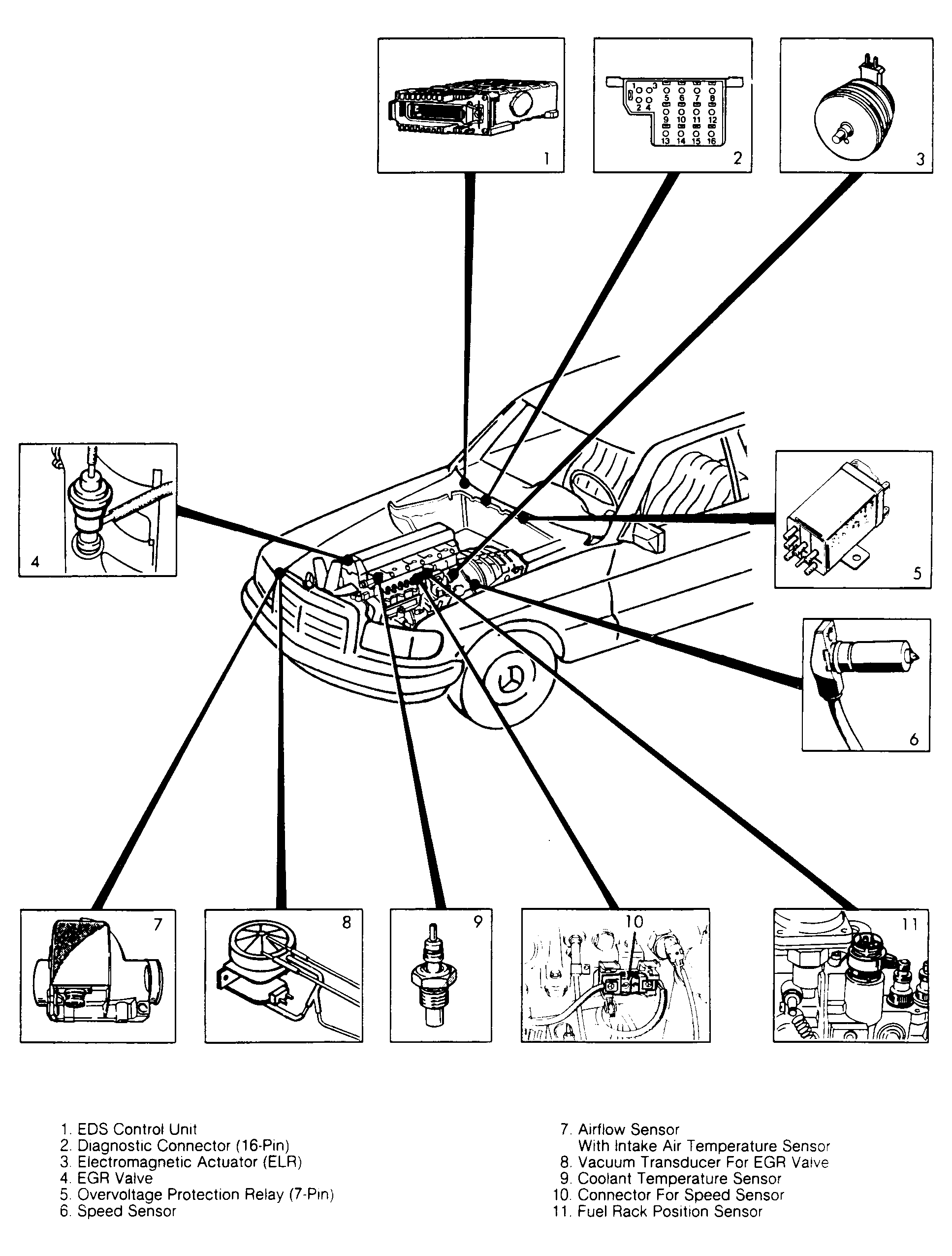

Fig 2: Locating Diesel Components (350SD & 350SDL 3.5L 6-Cylinder)
G91H17449Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
