Component Locations
Component Locations

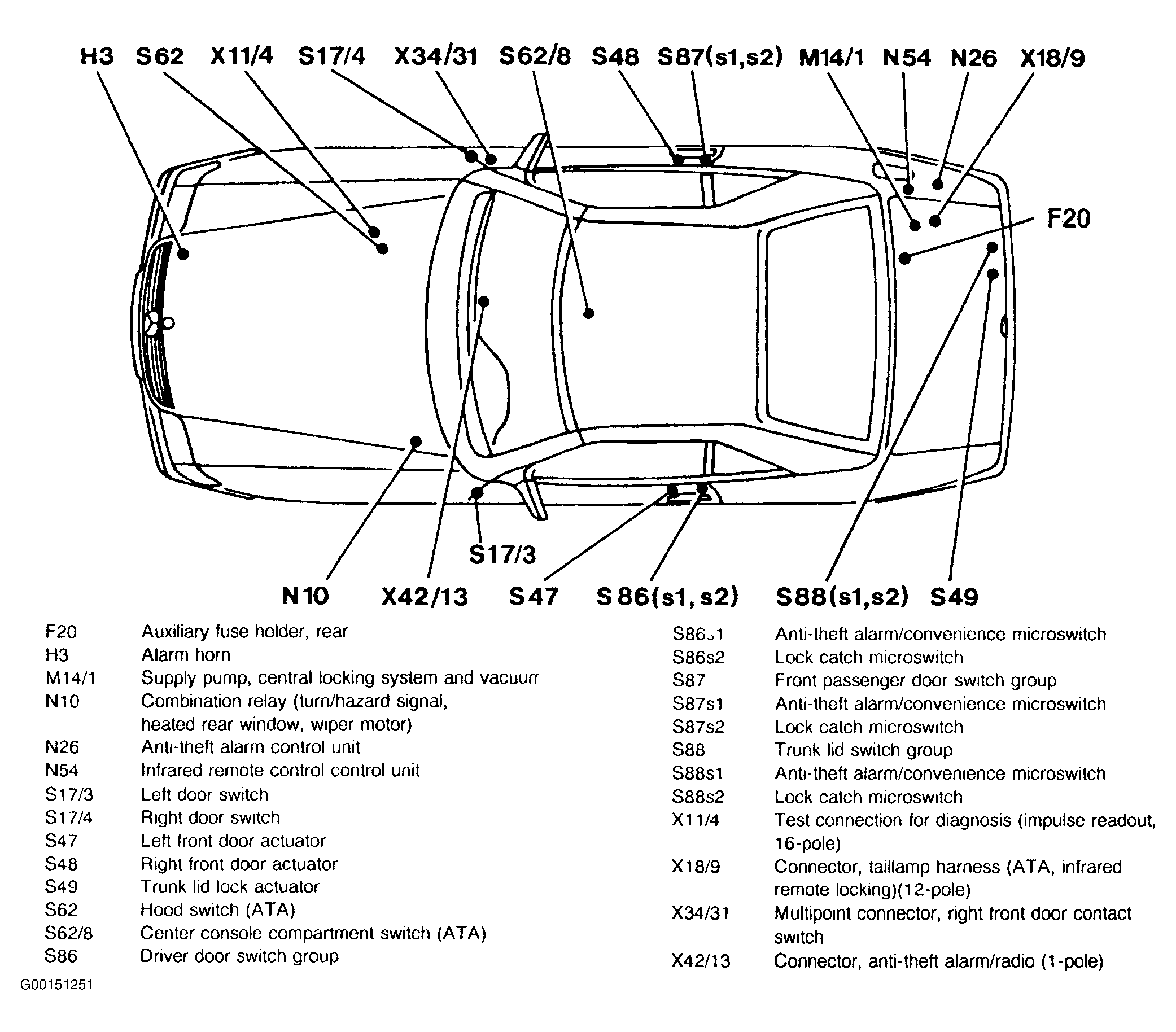

Fig 1: Locating Anti-Theft Alarm System Components (1 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

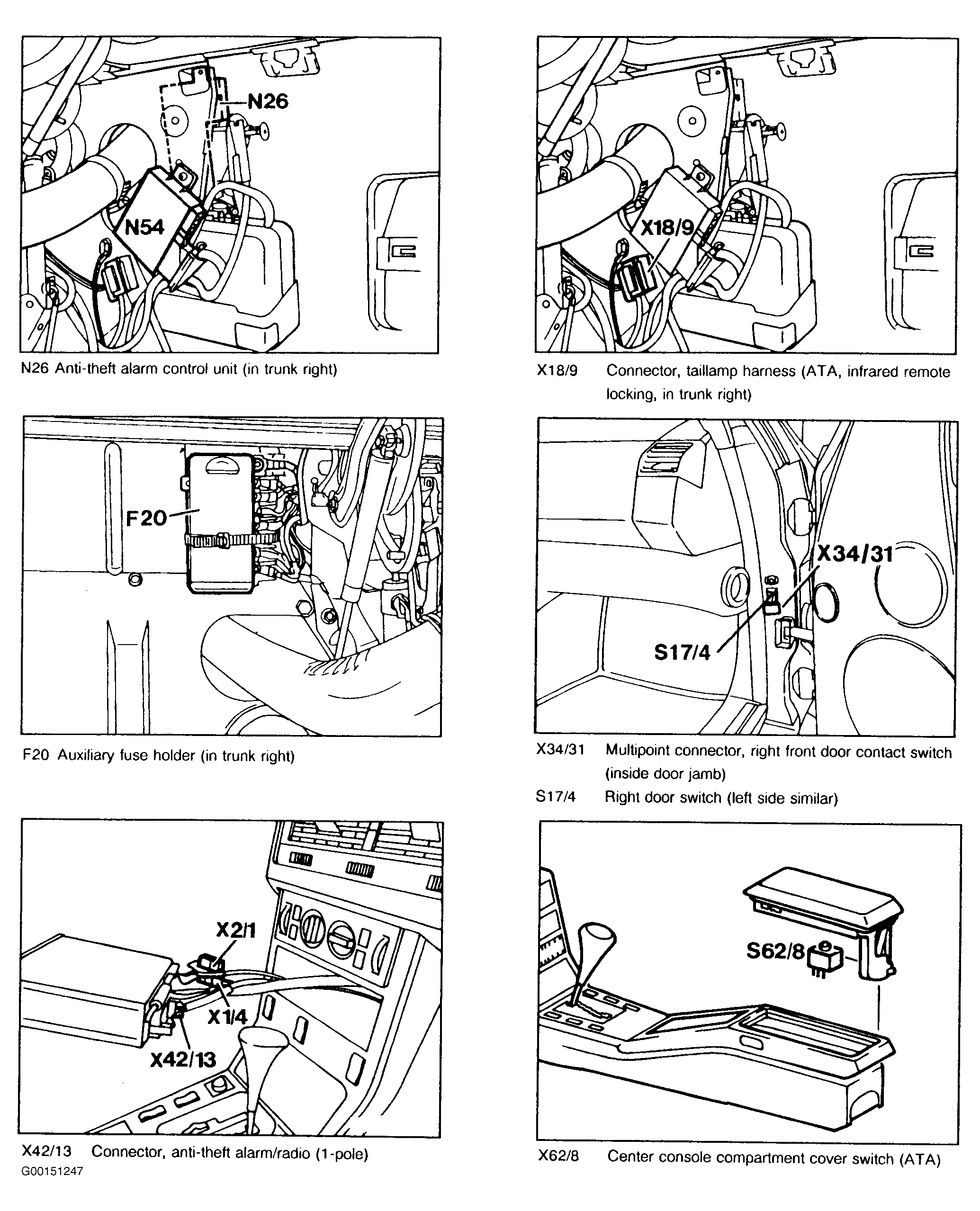

Fig 2: Locating Anti-Theft Alarm System Components (2 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
