EGR Temperature Sensor

EGR temperature sensor resistance value is proportional to EGR temperature. EGR temperature sensor resistance must meet resistance range shown in graph. See Fig 1 .

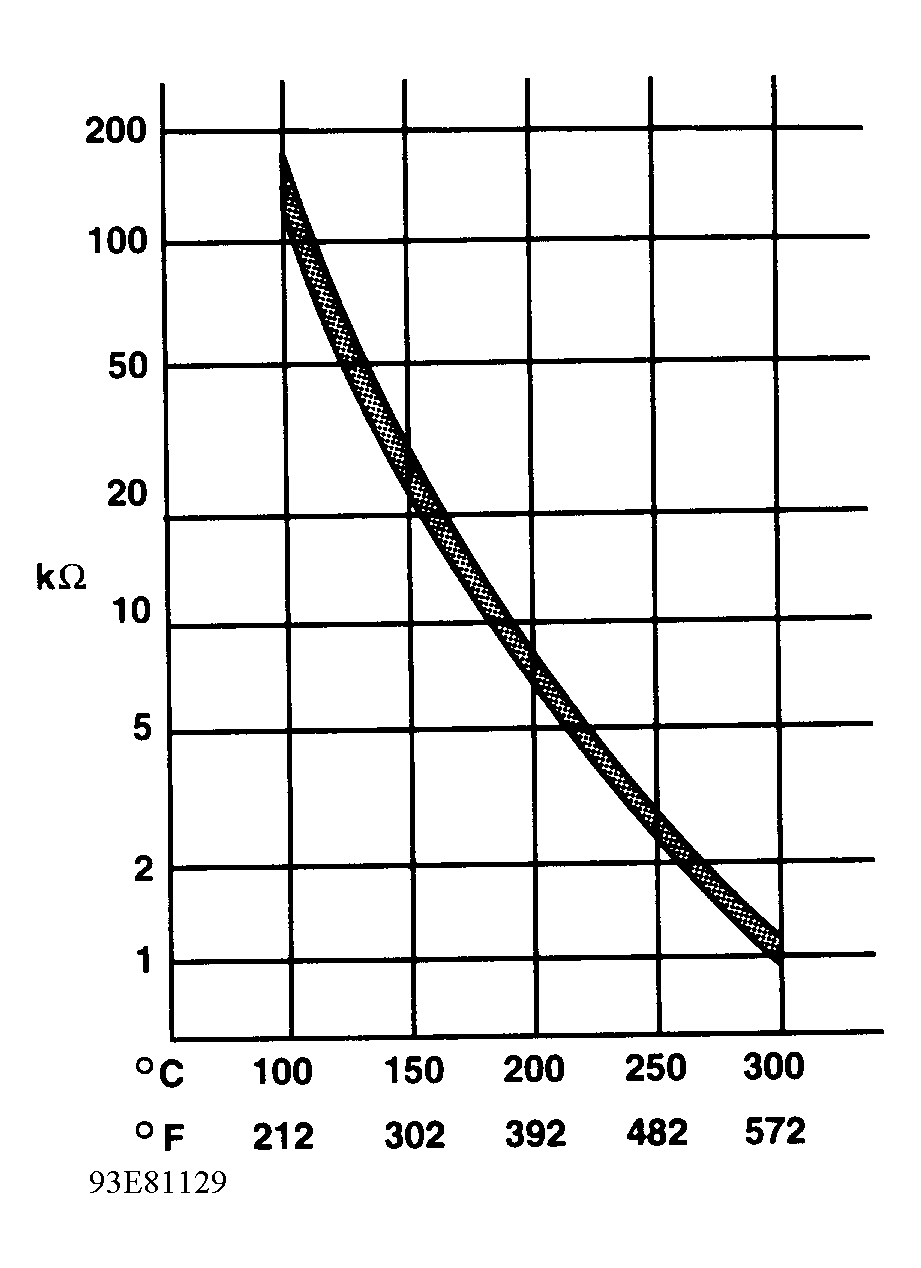

Fig 1: EGR Temperature Sensor Resistance Range

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
