Engine Controls - System/Component Tests - 3.0L
›
Computerized Engine Controls
Computerized Engine Controls

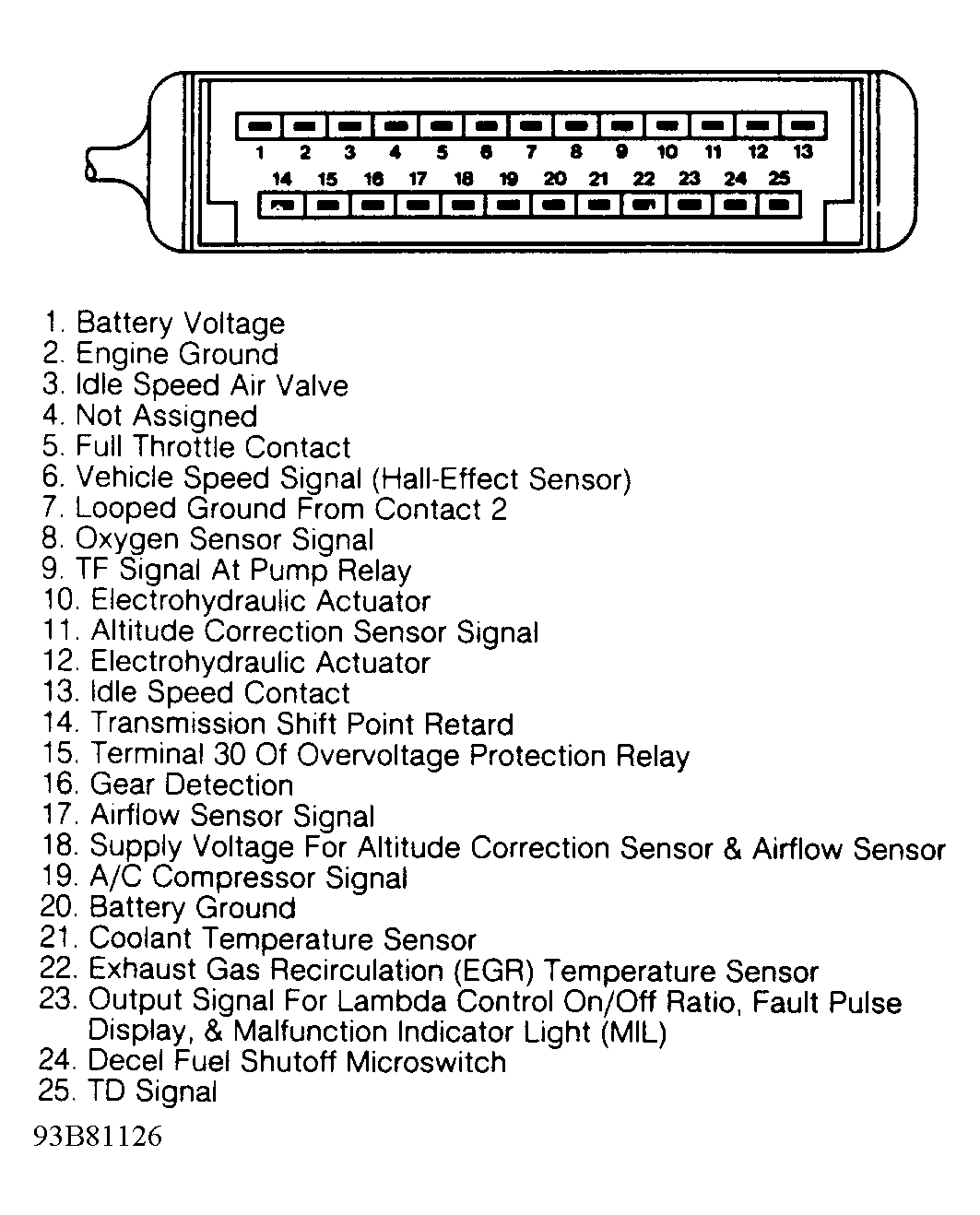

Fig 1: Identifying CIS-E Control Unit Terminals
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
