3.5L Fault Code Diagnostic Tests

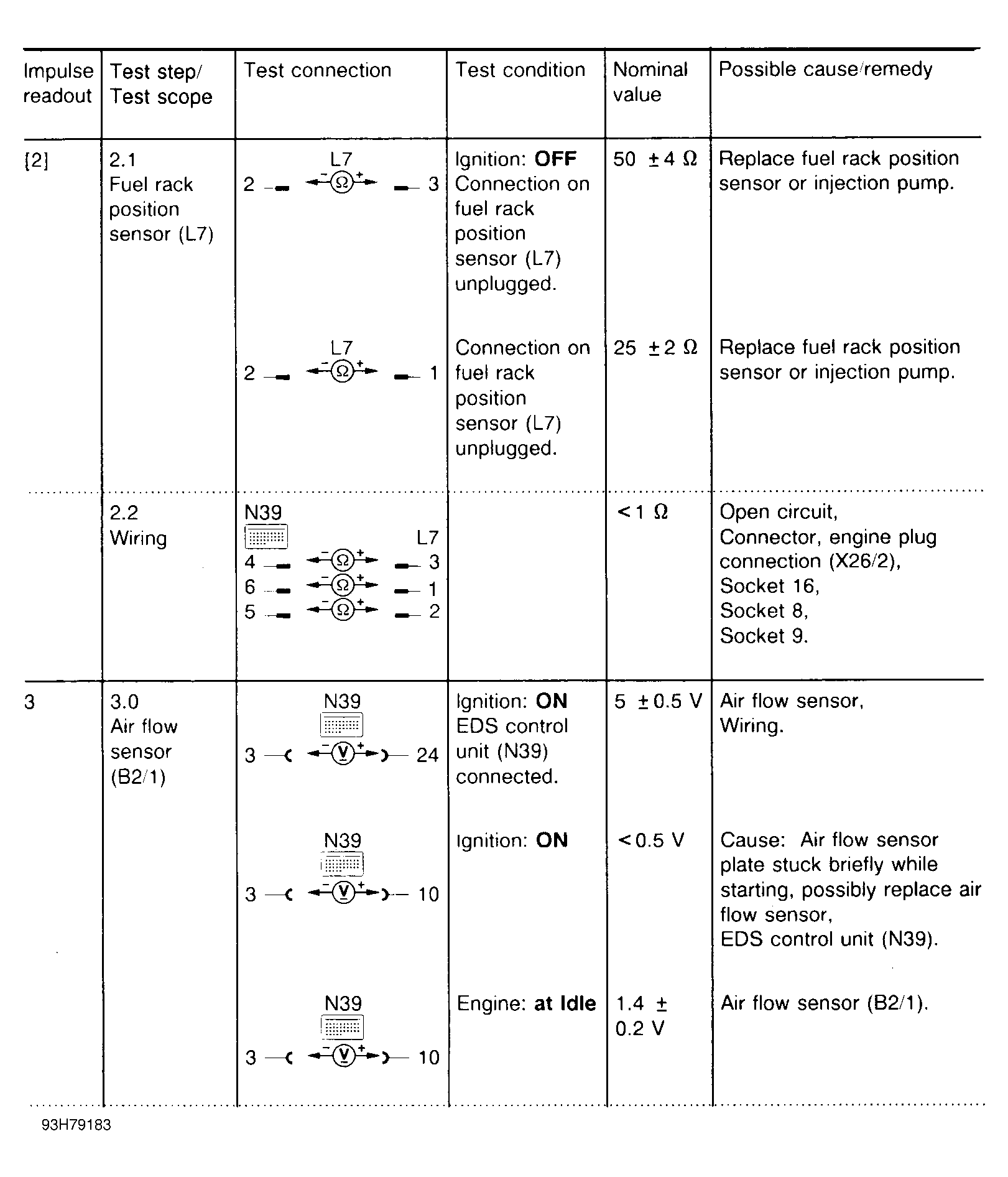

Fig 1: 3.5L Fault Code Diagnosis (1 of 9)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 2: 3.5L Fault Code Diagnosis (2 of 9)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 3: 3.5L Fault Code Diagnosis (3 of 9)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 4: 3.5L Fault Code Diagnosis (4 of 9)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 5: 3.5L Fault Code Diagnosis (5 of 9)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 6: 3.5L Fault Code Diagnosis (6 of 9)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 7: 3.5L Fault Code Diagnosis (7 of 9)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 8: 3.5L Fault Code Diagnosis (8 of 9)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 9: 3.5L Fault Code Diagnosis (9 of 9)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA
