Electrical System Tests (Section 23)

NOTE: For aid in using diagnostic charts, see USING DIAGNOSTIC CHARTS  .

Fig 1: Electrical System Tests - Section 23 (Steps 1.0-2.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

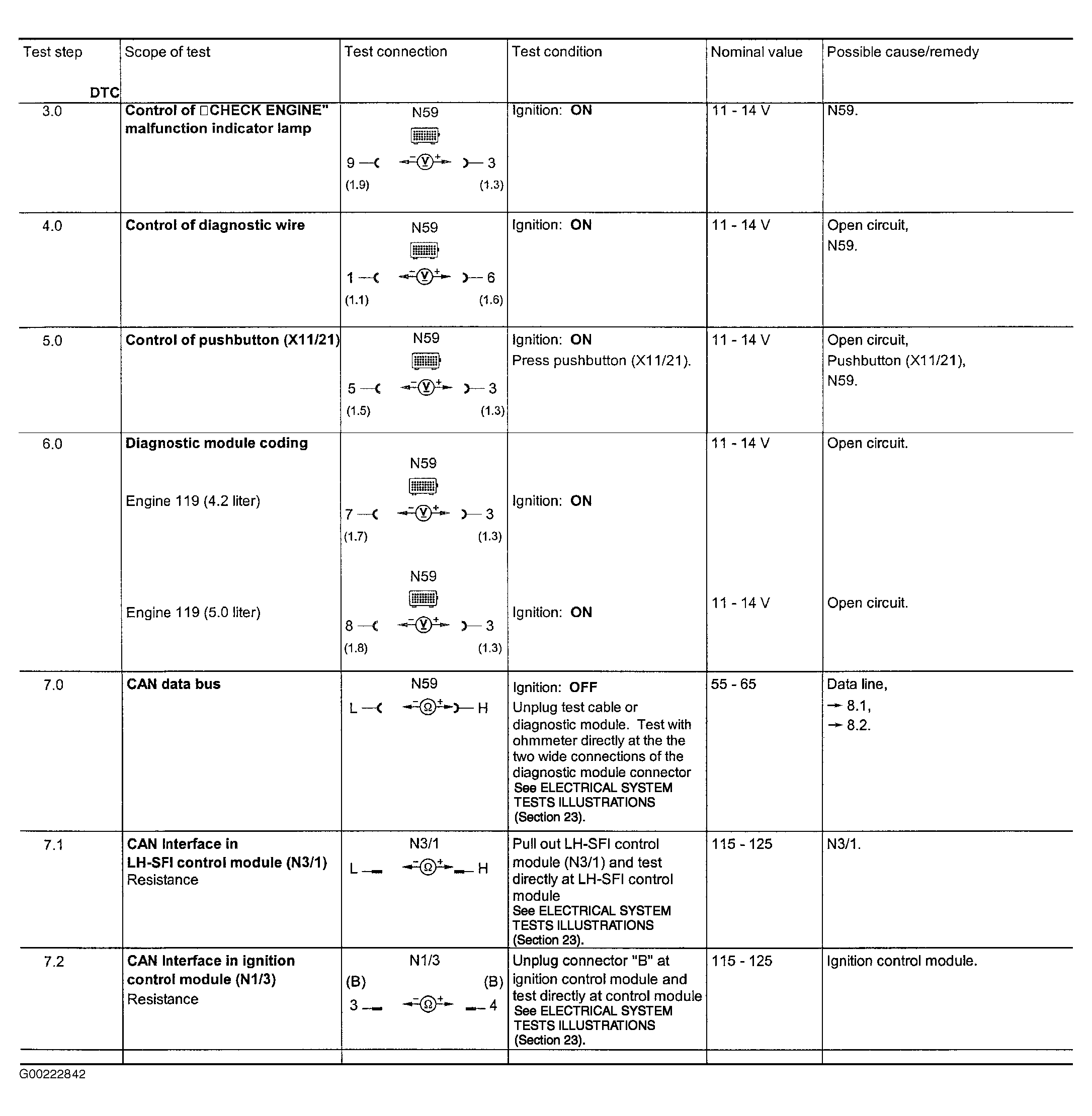

Fig 2: Electrical System Tests - Section 23 (Steps 3.0-7.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
