Engine Controls - Tests W/Codes - Diagnostic Module
›
Connector Identification
Connector Identification

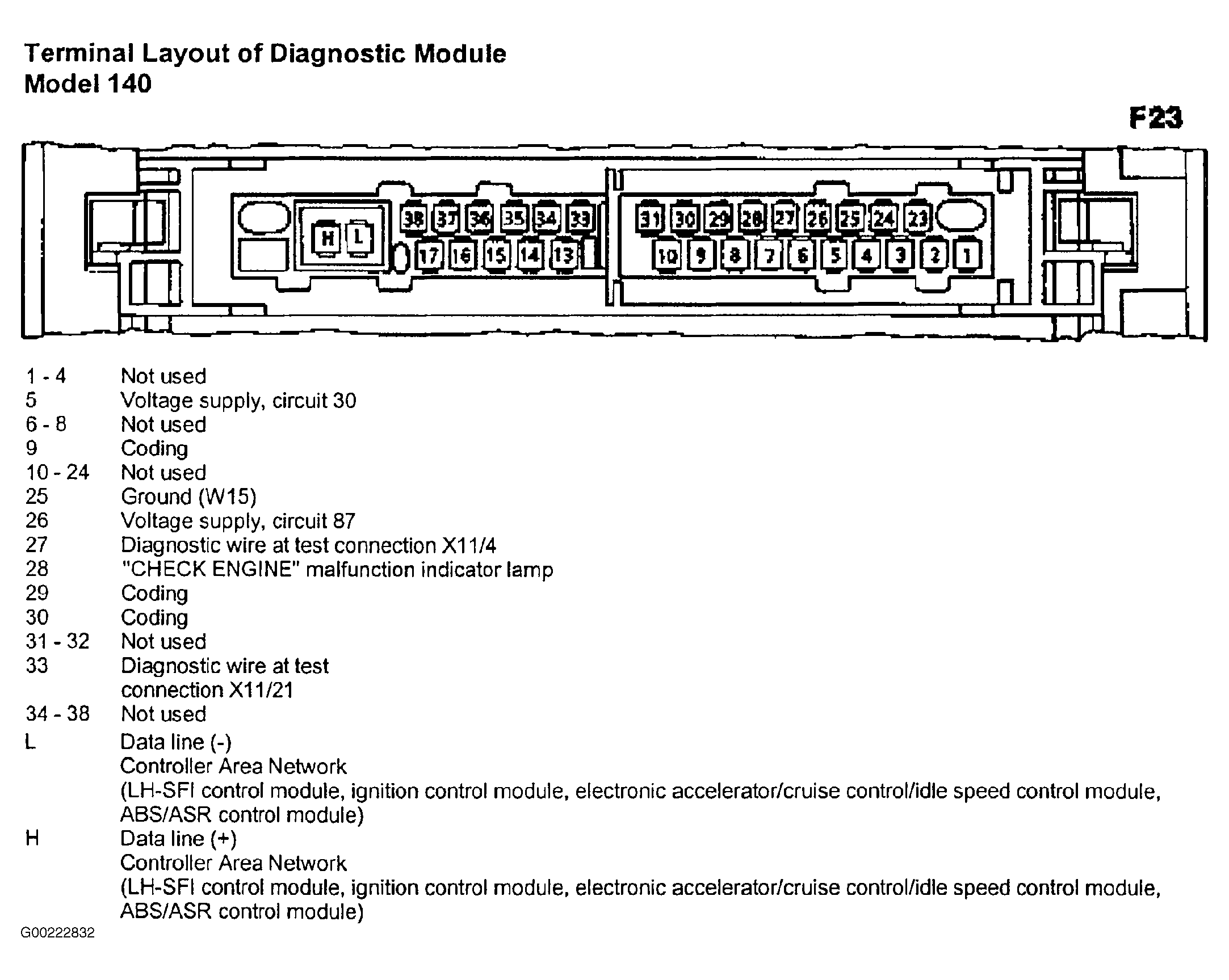

Fig 1: Identifying Diagnostic Module Terminal Layout
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
