Cruise Control System Tests (Section 24)
Cruise Control System Tests (Section 24)

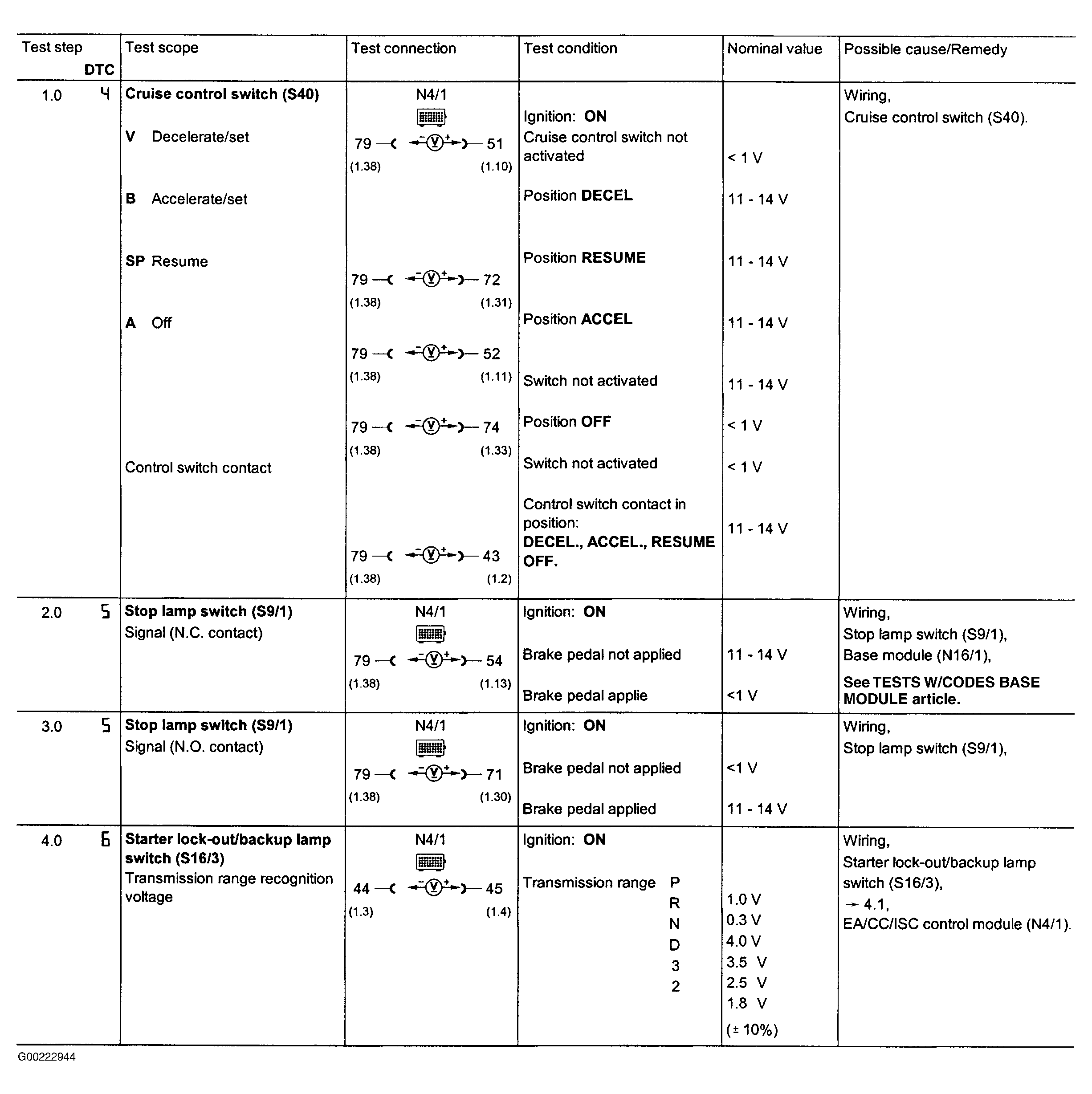

Fig 1: Cruise Control System Tests - Section 24 (Steps 1.0-4.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

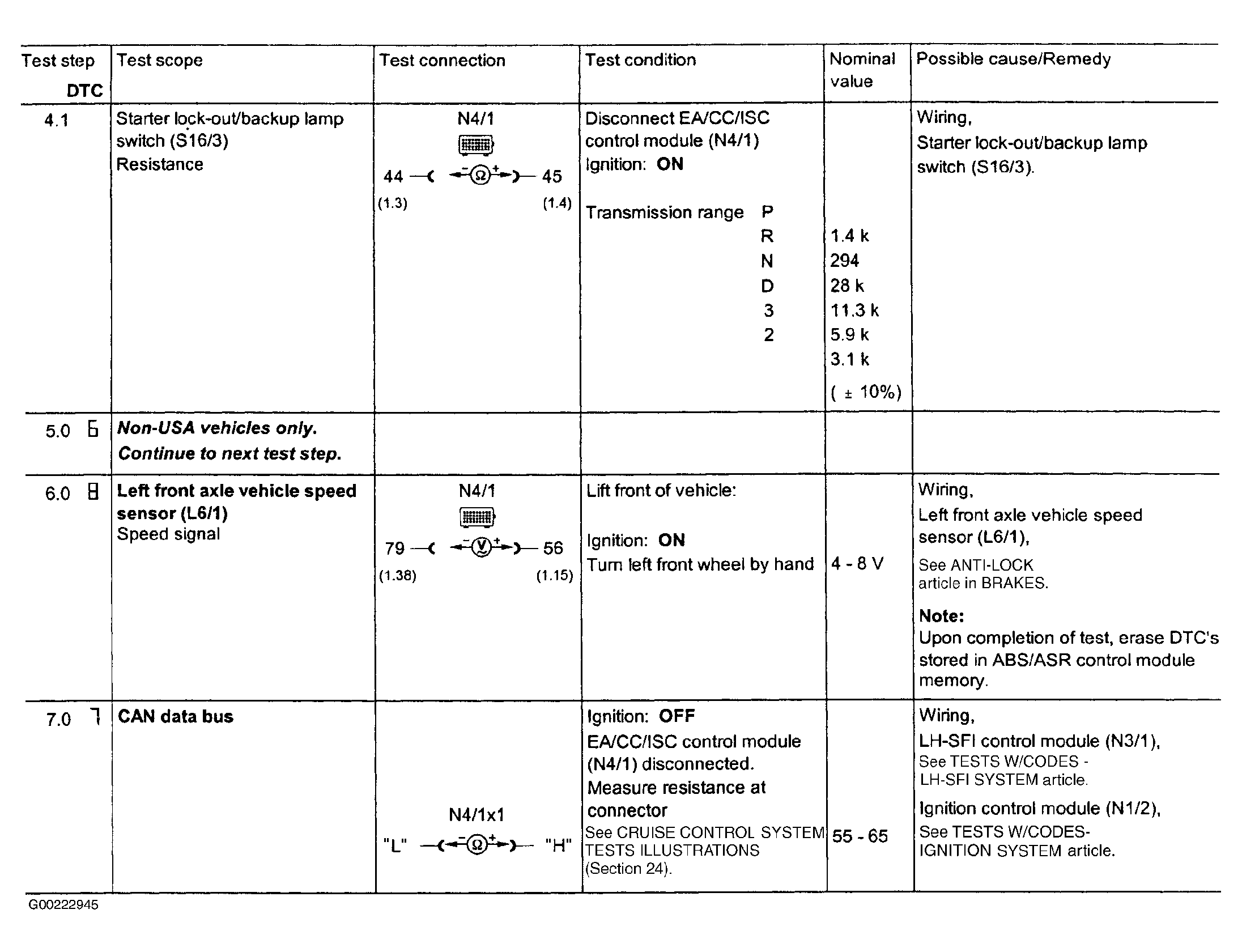

Fig 2: Cruise Control System Tests - Section 24 (Steps 4.1-7.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
