5-Cylinder Functional Test Charts

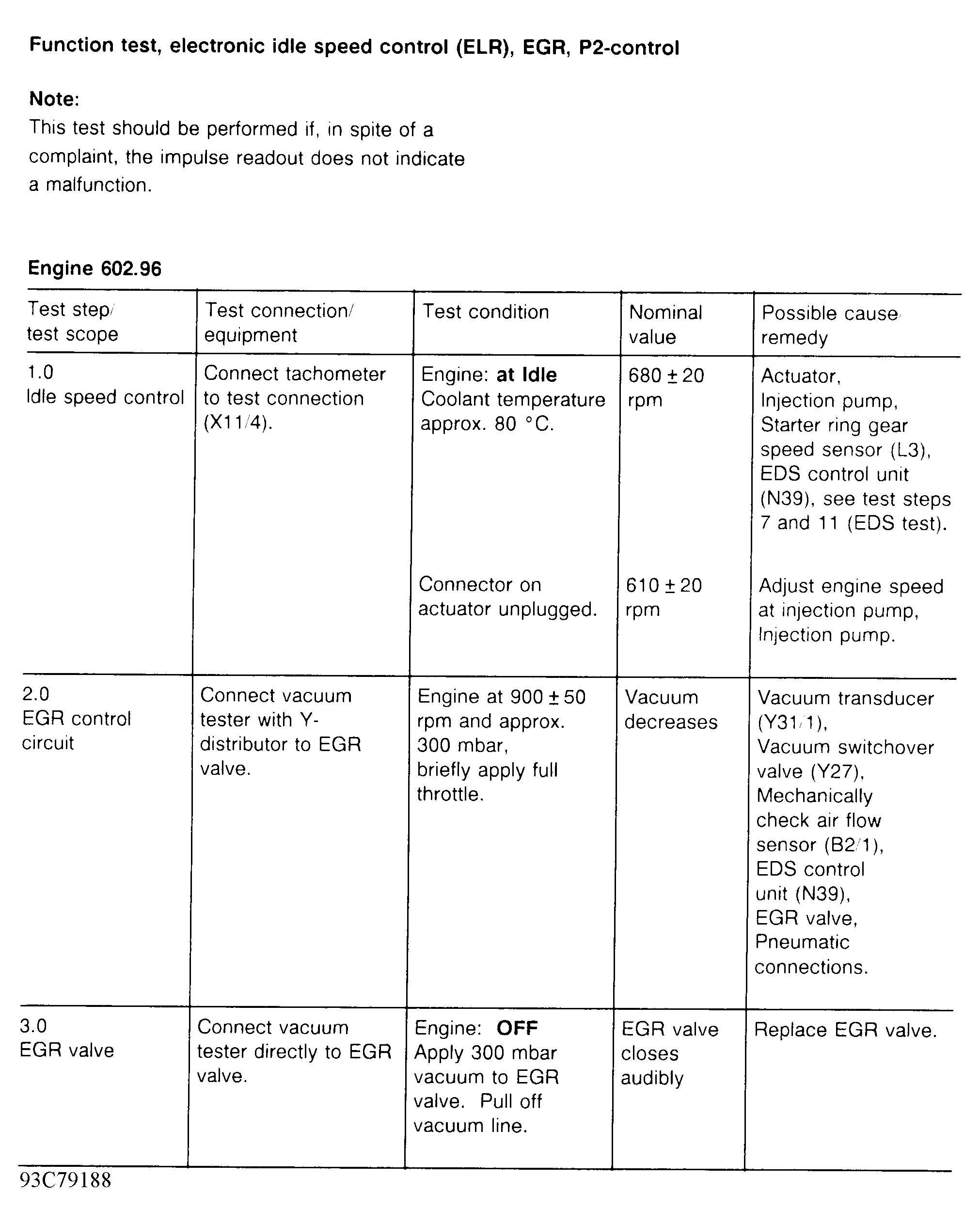

Fig 1: 5-Cylinder Functional Test (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

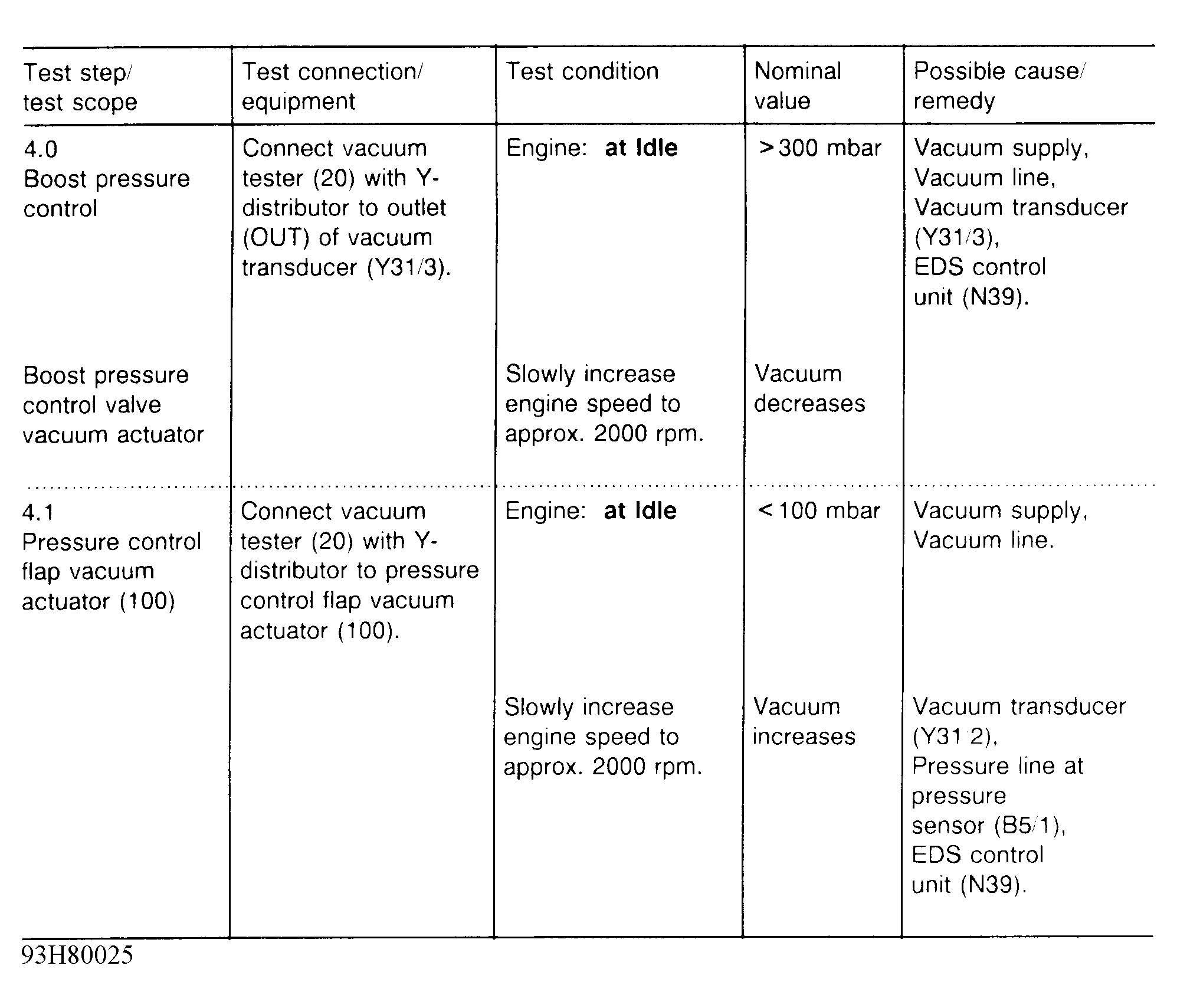

Fig 2: 5-Cylinder Functional Test (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA
