Connector Identification

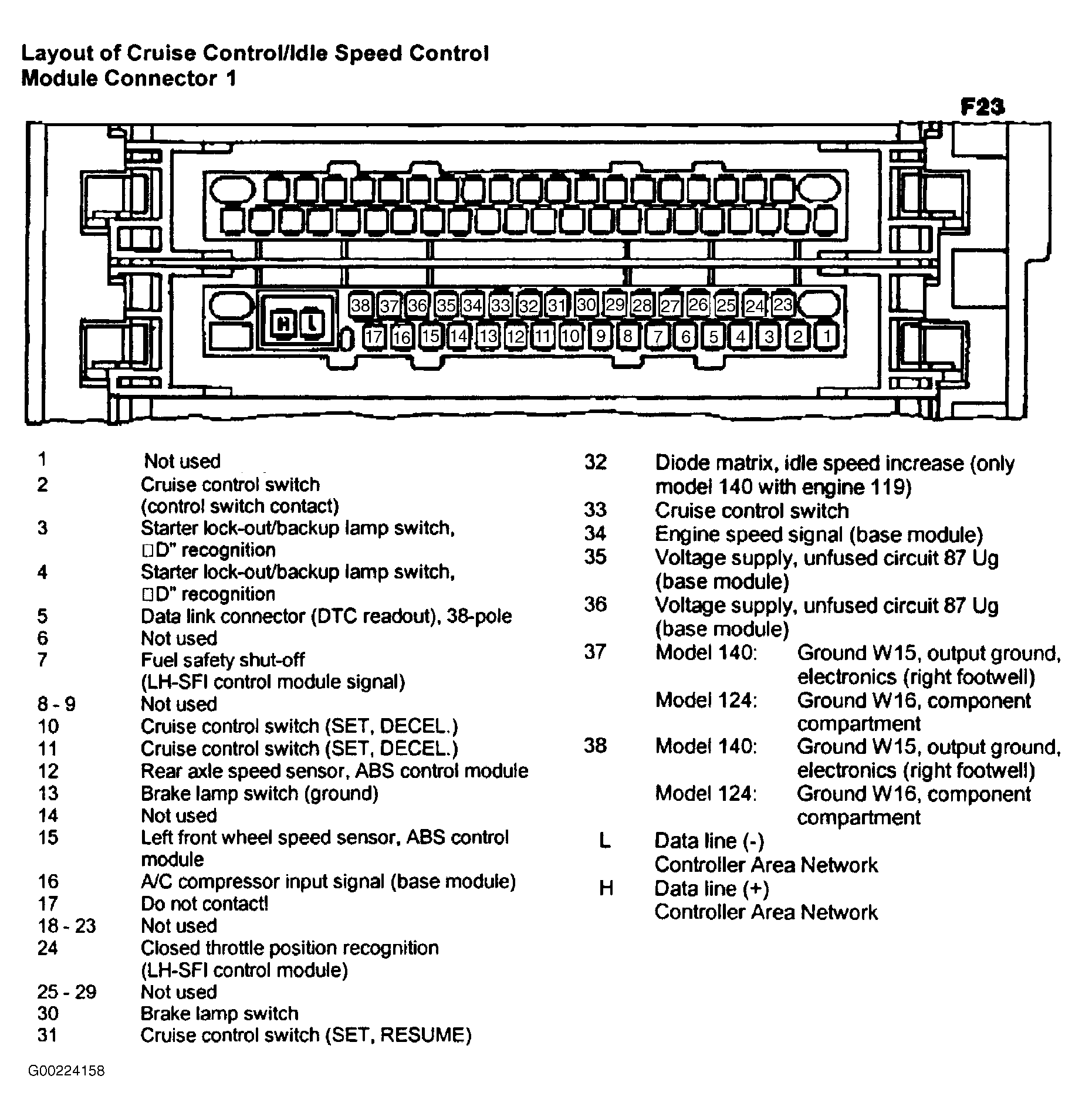

Fig 1: Cruise Control/Idle Speed Control Module Connector 1 Pin Identification

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Cruise Control/Idle Speed Control Module Connector 2 Pin Identification

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
