Electrical System Tests (Section 23)

NOTE: For aid in using diagnostic charts, see USING DIAGNOSTIC CHARTS  .

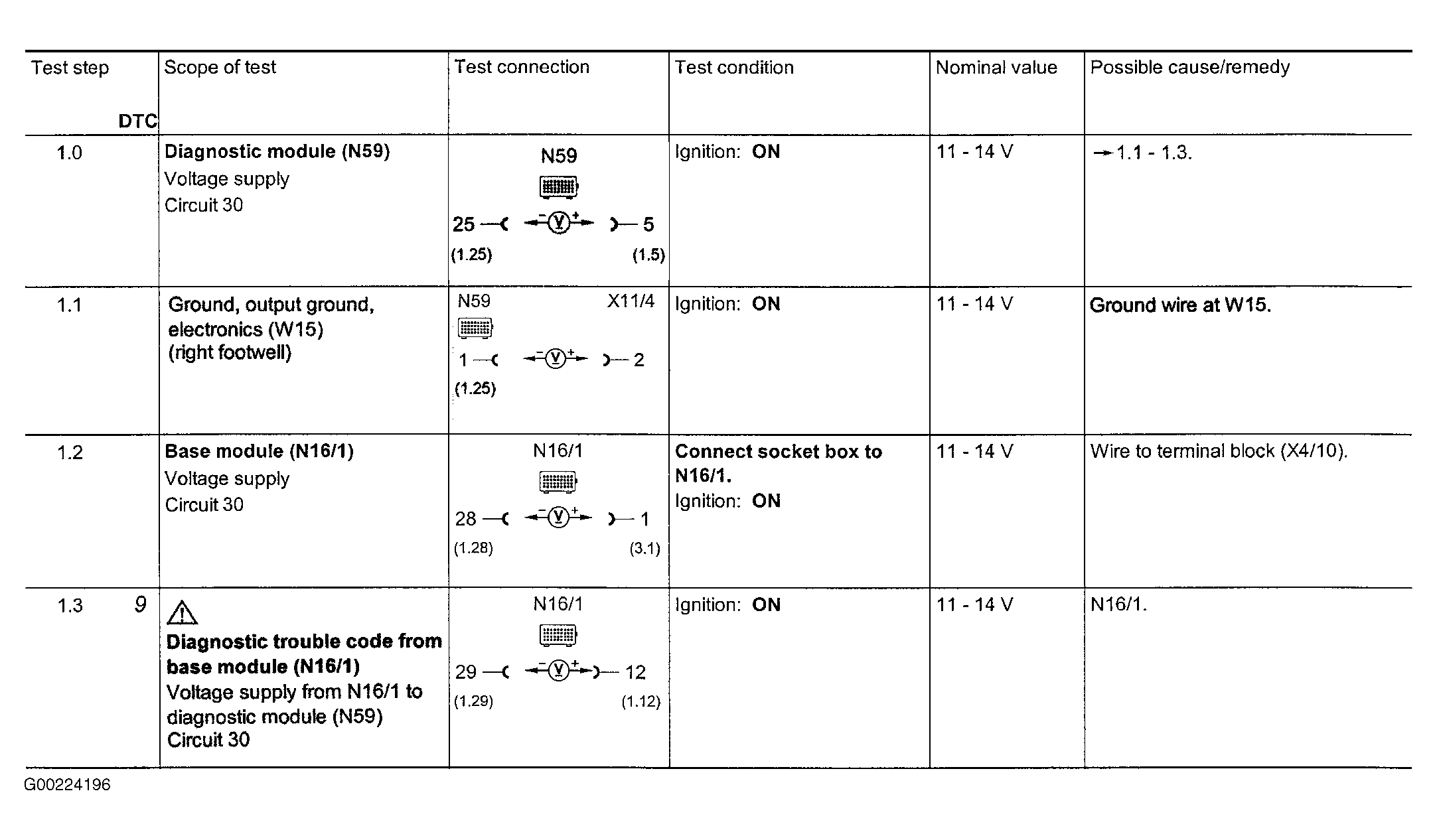

Fig 1: Electrical System Test - Section 23 (Steps 1.0-1.3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

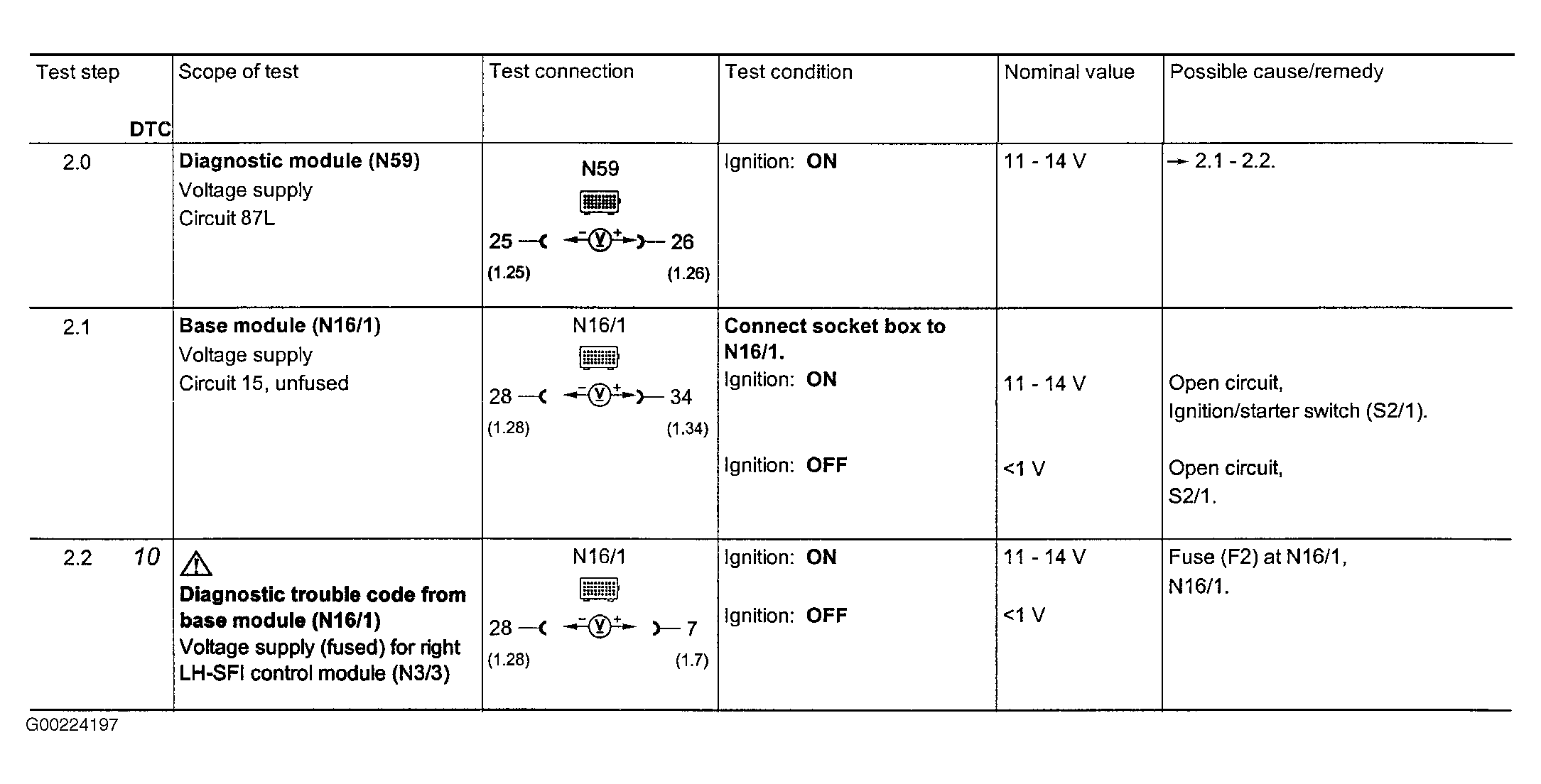

Fig 2: Electrical System Test - Section 23 (Steps 2.0-2.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

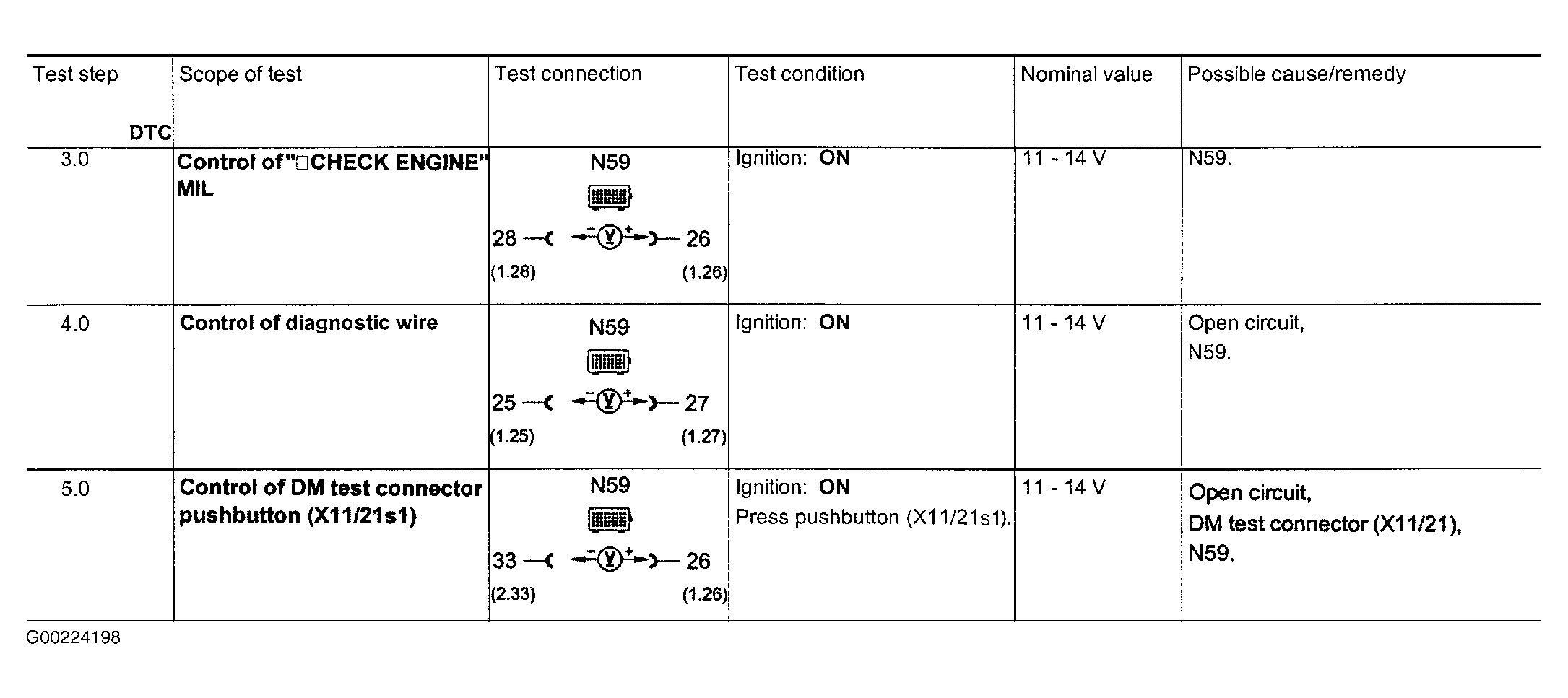

Fig 3: Electrical System Test - Section 23 (Steps 3.0-5.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

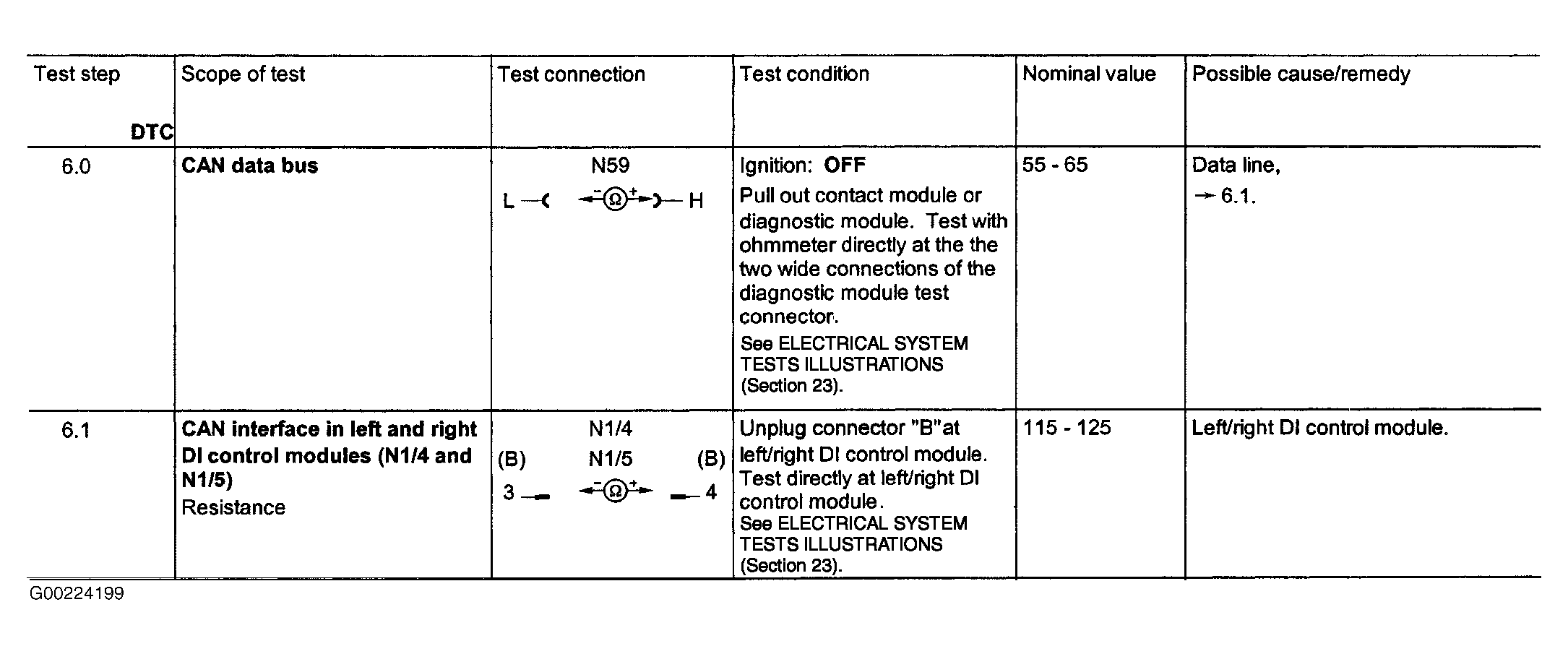

Fig 4: Electrical System Test - Section 23 (Steps 6.0-6.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
