Preparation For Test (Section 22)

1. Turn ignition OFF.
2. Remove diagnostic module (N59).
3. Connect socket box with contact module 3 and contact box. See Fig 1 .
NOTE: The following step only pertains to test steps 1.2-1.3 and 2.1-2.2.
4. With ignition OFF, remove base module (N16/1).Connect socket box with contact module 1 and contact box.

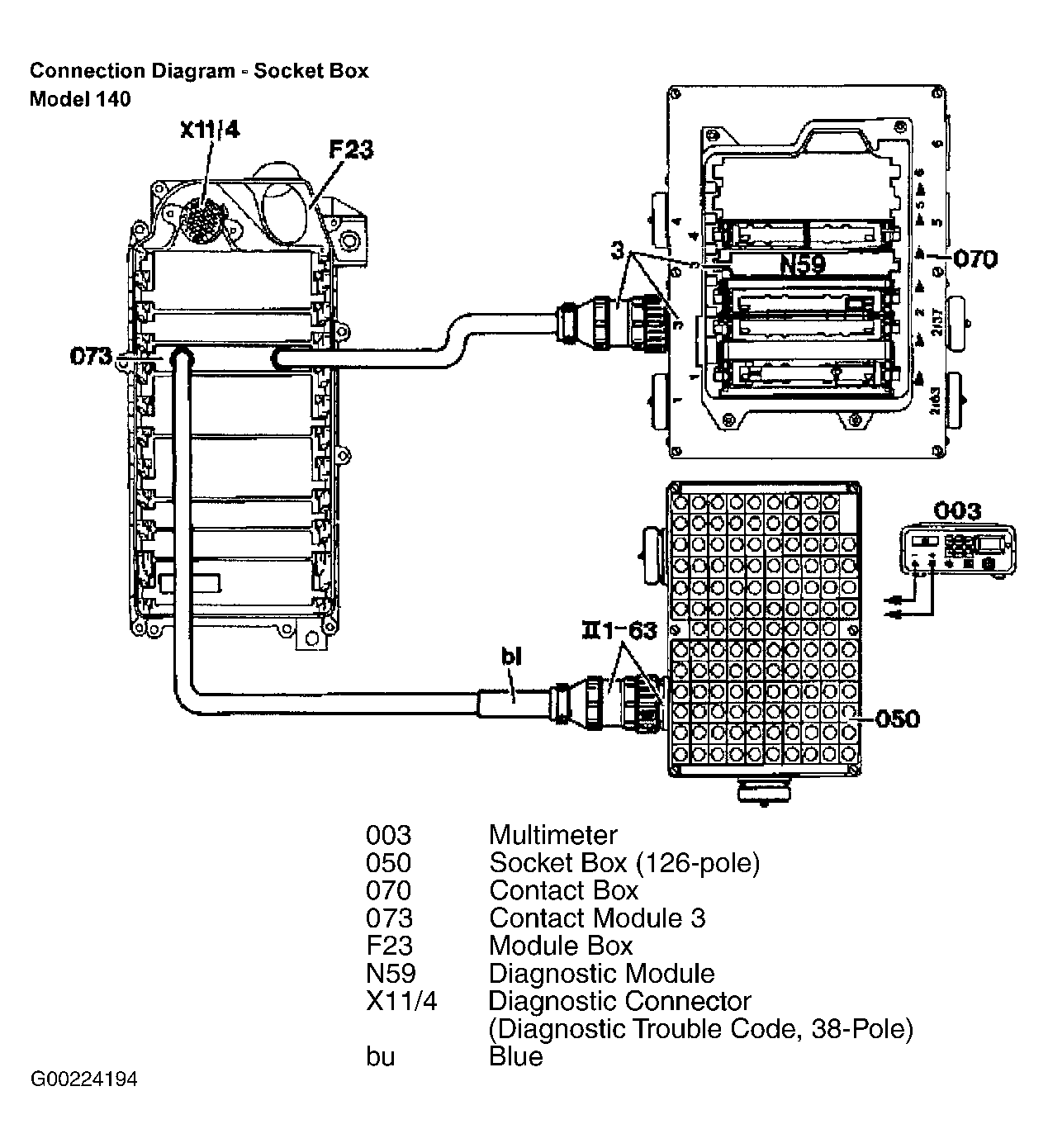

Fig 1: Connecting Socket Box To Control Module

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
